- Work with rubber collet
- Built-in rotary cylinder
- Parallel Clamp with over 1.5mm range
- Really fast collet change with wrench
- Import selected deep groove ball bearing,stable and tough
- Double piston,provide more clamping force
- High resistance to coolant fluid and cutting chips(Fluid and dust proof when air feeding in)
- No fluid direct to the chuck body
 |
 |
|---|---|
| 5μm Filter. Applies in all series of JAP100/JAP200 a set go along with packing |
Replace the wrench with MQ42 |

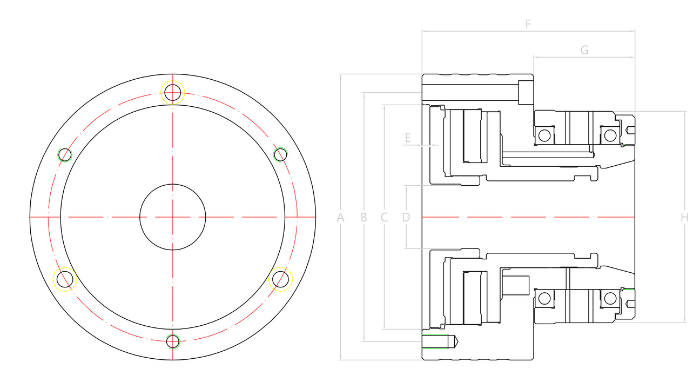

| JAP207-42BZI | JAP209-65BZI | JAP210-80BZI | |
|---|---|---|---|
| A | 197 ( 7.76" ) | 234 ( 9.21" ) | 247 ( 9.72" ) |
| B (P.C.D.) | 172 ( 6.77" ) | 213 ( 8.39" ) | 226 ( 8.9" ) |
| C | 155 ( 6.1" ) | 185 ( 7.28" ) | 200 ( 7.87" ) |
| D | 42 ( 1.65" ) | 65 ( 2.56" ) | 80 ( 3.15" ) |
| E | 5.5 ( 0.22" ) | 5.5 ( 0.22" ) | 5.5 ( 0.22" ) |
| F | 146 ( 5.75" ) | 149 ( 5.87" ) | 140.5 ( 5.53" ) |
| G | 69.5 ( 2.74" ) | 76 ( 2.99" ) | 72 ( 2.83" ) |
| H | 146 ( 5.75" ) | 187.5 ( 7.38" ) | 196 ( 7.72" ) |
| Mounting Bolts | 3H-M10 ( front )+ 3H-M10 ( rear ) | 6H-M10 ( front )+ 6H-M10 ( rear ) | 6H-M10 ( front ) |
| Collet | 42BZI Collet | 65BZI Collet | 80BZI Collet |
| Max. RPM | 2500 | - | - |
| Air Pressure | 3-7kg/cm² (43-100 psi) | 3-8kg/cm² (43-114 psi) | 3-8kg/cm² (43-114 psi) |
| Max. Capacity | 42 mm ( 1.65" ) | 65 mm ( 2.56" ) | 80 mm ( 3.15" ) |
| Piston Area | 256cm² | 364cm² | 405cm² |
| Gripping Force | 3530 kgf@7kg/cm² ( 7782 lbf@100psi ) | 5010 kgf@7kg/cm² ( 11045 lbf@100psi ) | - |
| Net Weight | 21.9 kgs ( 48.3 lbs ) | 29.9 kgs ( 65.9 lbs ) | - |
