- Work with rubber collet
- Parallel Clamp with over 1.5mm range
- Really fast collet change with wrench
- Adjustable/Removable stopper,can alter to air blow,sensing device
- Capable to handle heavy duty work
 |
 |
|---|---|
| Rubber Collet | Replace the wrench with MQ42 |

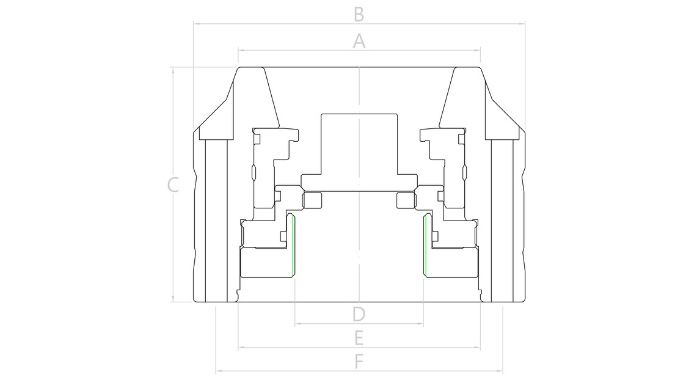

| JPCA-42Z100 | JPCA-65Z130 | |
|---|---|---|
| A | 100 ( 3.94" ) | 119 ( 4.69" ) |
| B | 137 ( 5.39" ) | 164 ( 6.46" ) |
| C | 97 ( 3.82" ) | 110.5 ( 4.35" ) |
| D ( Drawtube Max. ) | M55xP2.0 | M72xP1.5 |
| E | 100 ( 3.94" ) | 130 ( 5.12" ) |
| F ( P.C.D. ) | 118 ( 4.65" ) | 147 ( 5.79" ) |
| Mounting Bolts | 6H-M8 | 6H-M8 |
| Collet | 42BZI Collet | 65BZI Collet |
| Collet Wrench | MV3200 | MV6500 |
| Axial Stroke | 5 mm ( 0.2" ) | 5 mm ( 0.2" ) |
| Clamping Range | ± 0.5 mm ( 0.02" ) | ± 0.5 mm ( 0.02" ) |
| Max. Capacity | 42 mm ( 1.65" ) | 65 mm ( 2.56" ) |
| Max.Axial Force | 3200kgf ( 7040lbf ) | 4000kgf ( 8800lbf ) |
| Gripping Force | 7200kgf ( 15840lbf ) | 9000kgf (19841lbf ) |
| Max. RPM | 6500 | 5500 |
| Net Weight | 7.3 kgs ( 16.1 lbs ) | 11 kgs ( 24.3 lbs ) |
