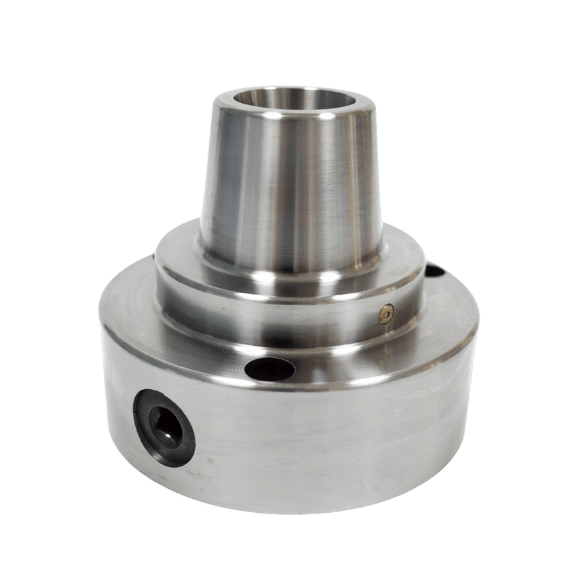

- They can be used for all turning, facing, boring, grinding, and milling operations on center lathes and grinding machines.
- The simple key operated scroll provides a uniform, distortion free clamping of the workpiece and low collet exchange time.

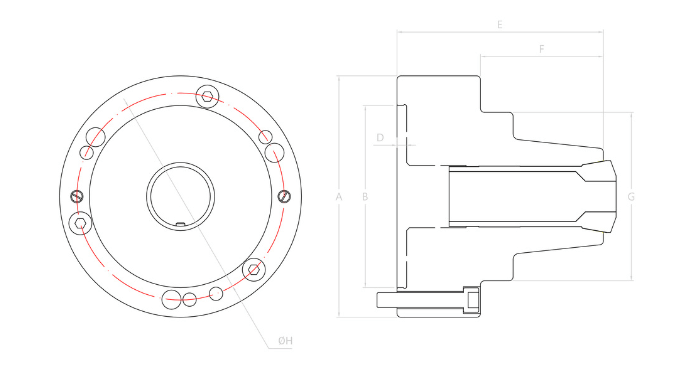

| JMT | |
|---|---|
| A | 126 ( 4.96" ) |
| B | 95 ( 3.74" ) |
| C | 26 ( 1.02" ) |
| D | 5 (0.2" ) |
| E | 107.5 ( 4.23" ) |
| F | 64 ( 2.52" ) |
| G | 87.9 ( 3.46" ) |
| H | 108 ( 4.25" ) |
| Mounting | 3H-M8 |
| Net Weight | 4.1 kgs ( 9.0 lbs ) |
