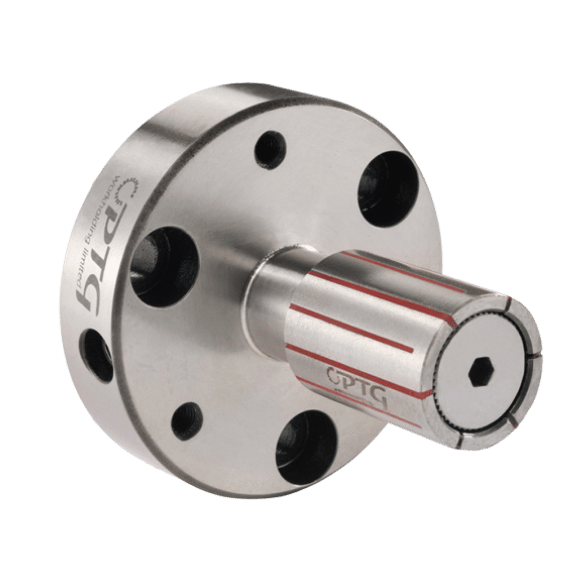

- Large expansion range up to 0.6 mm
- Double-angle principle allows for fast loading/unloading of components
- Greater holding power by applying pressure.Evenly along the length of the sleeve
- Guaranteed accuracy of 0.015mm

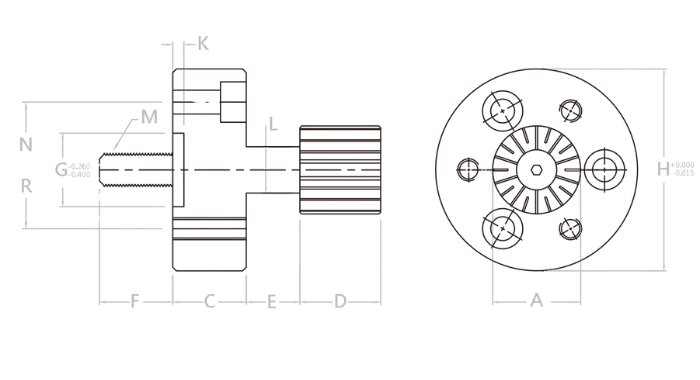

| 3A2 | 2C2 | 1C2 | 18C2 | 4C2 | 5C2 | 6C2 | 7C2 | 8C2 | |
|---|---|---|---|---|---|---|---|---|---|
| A ( Dia. ) | min. :16.5 MAX. : 22.0 | min. : 22.0 MAX. : 28.5 | min. : 28.5 MAX. : 40.0 | min. : 40.0 MAX. : 51.0 | min. : 51.0 MAX. : 73.0 | min. : 73.0 MAX. : 89.0 | min. : 89.0 MAX. : 102.0 | min. : 101.0 MAX. : 143.0 | min. : 143.0 MAX. : 178.0 |
| C | 20 | 20 | 20 | 20 | 20 | 25 | 25 | 30 | 30 |
| D | 26 | 32 | 38 | 45 | 50 | 60 | 69 | 78.5 | 99.5 |
| E | 14.6 | 15 | 15.5 | 15.3 | 14.8 | 25.3 | 24.7 | 25.2 | 24.6 |
| F | 20 | 22 | 30 | 31 | 36 | 36 | 37 | 47 | 22 |
| G | 40 | 40 | 40 | 40 | 40 | 60 | 60 | 100 | 100 |
| H | 75 | 75 | 75 | 75 | 75 | 120 | 120 | 180 | 180 |
| K | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| L | 12.6 | 14.1 | 20.7 | 26.3 | 37 | 57.3 | 71.1 | 84.1 | 123 |
| M (Pull Thread) | M4 | M8 | M8 | M10 | M12 | M20 | M20 | M24 | M36 |
| N (Bolts) | Ø58-M8 | Ø58-M8 | Ø58-M8 | Ø58-M8 | Ø58-M8 | Ø94-M10 | Ø94-M10 | Ø150-M12 | Ø150-M12 |
| R | Ø28-M4 | Ø28-M4 | Ø58-M6 | Ø58-M6 | Ø58-M6 | Ø94-M8 | Ø94-M8 | Ø150-M10 | Ø150-M10 |
| Max. Pull Force ( kgf ) | 700 | 1000 | 1200 | 1800 | 2300 | 1800 | 3200 | 3700 | 5500 |
