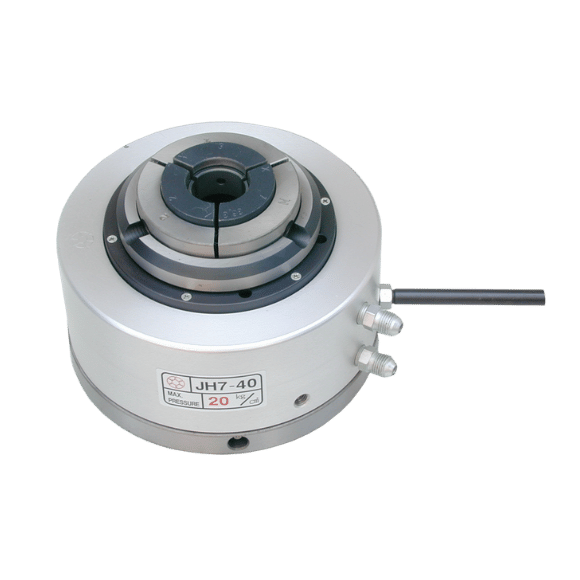

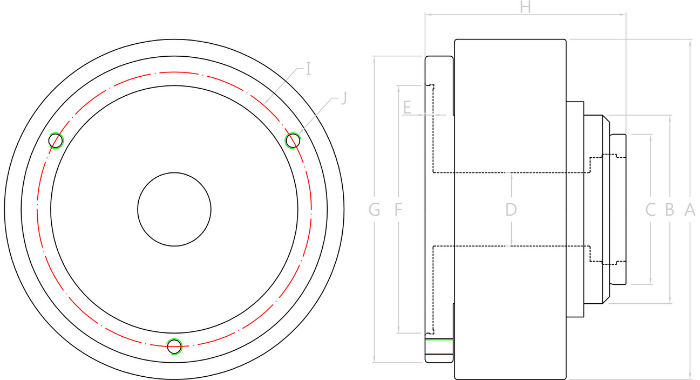

| fig | fig.1 | fig.1 | fig.1 | fig.1 | fig.1 |
| A | 138 ( 5.43" ) | 190 ( 7.48" ) | 211(8.31") | 232(9.13") | 275(10.83") |
| B | 68 ( 2.68" ) | 94 ( 3.7" ) | 136(5.35") | 136(5.35") | 168(6.61") |
| C | 45 ( 1.77" ) | 65 ( 2.56" ) | 105(4.13") | 105(4.13") | 140(5.51") |
| D | 25 ( 0.98" ) | 45 ( 1.77" ) | 68(2.68") | 88(3.46") | 118(4.65") |
| E | 4 ( 0.16" ) | 5 ( 0.2" ) | 5(0.2") | 6(0.24") | 6(0.24") |
| F | 100 ( 3.94" ) | 155 ( 6.1" ) | 155(6.1") | 190(7.48") | 190(7.48") |
| G | 135 ( 5.31" ) | 192 ( 7.56" ) | 192(7.56") | 230(9.06") | 229(9.02") |
| H | 102.5 ( 4.04" ) | 124.5 ( 4.9" ) | 141(5.55") | 150(5.91") | 157.5(6.2") |
| I ( P.C.D. ) | 115 ( 4.53" ) | 172 ( 6.77" ) | 172(6.77") | 210(8.27") | 210(8.27") |
| J | 3H-M8 | 3H-M10 | 3H-M10 | 3H-M12 | 3H-M12 |
| Collet / Jaw | C-25 | C-40 | C-70 | C-90 | C-120 |
| Air/Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Operating Pressure | 10-20kg/cm² ( 142-284psi ) | 10-20kg/cm² ( 142-284psi ) | 10-20kg/cm² ( 142-285psi ) | 10-20kg/cm² ( 142-284psi ) | 10-20kg/cm² ( 142-284psi ) |
| Max. RPM | 1800 | 1600 | 1400 | 1100 | 900 |
| Max. Capacity (Through/ None) | 25mm/32mm | 45mm/50mm | 68mm/90mm | 88mm/88mm | 118mm/118mm |
| Piston Area | 56cm² | 85cm² | 117cm² | 133cm² | 183cm² |
| Gripping Force | 2508 kgf@16kg/cm² ( 5529 lbf@228psi ) | 4032 kgf@16kg/cm² ( 8889 lbf@228psi ) | 5197 kgf@16kg/cm² ( 11457 lbf@228psi ) | 5913 kgf@16kg/cm² ( 13035 lbf@228psi ) | 6148 kgf@12kg/cm² ( 13554 lbf@171psi ) |
| Net Weight | 5.8 kgs ( 12.8 lbs ) | 12.8 kgs ( 28.2 lbs ) | 18 kgs ( 39.7 lbs ) | 22.4 kgs ( 49.4 lbs ) | 31.6 kgs ( 69.7 lbs ) |
