- Work with rubber collet
- Use Special O-ring from Trelleborg
- Parallel Clamp with over 1.5mm range
- Really fast collet change with wrench
- Hydro operated,powerful force with compact body
 |
 |
|---|---|
| Replace the wrench with MQ42 | Rubber Collet |
| CHP206-42BZI | |
|---|---|

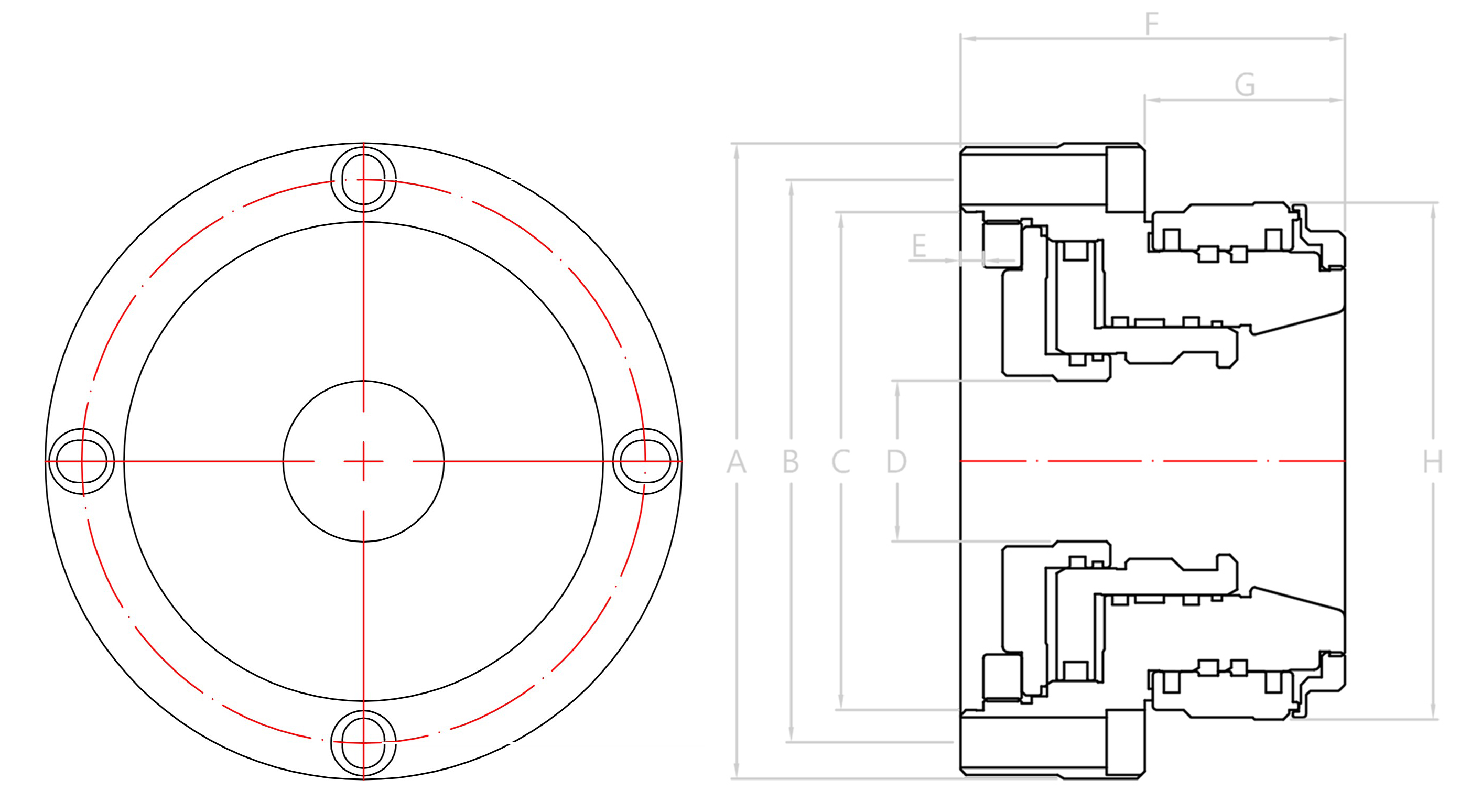

| A | 166 ( 6.54" ) |
| B (P.C.D.) | 147 ( 5.79" ) |
| C | 130 ( 5.12" ) |
| D | M43.5xp1.5 |
| E | 6 ( 0.24" ) |
| F | 100 ( 3.94" ) |
| G | 52 ( 2.05" ) |
| H | 135 ( 5.31") |
| Air/Hydraulic | Hydraulic |
| Collet | 42BZI Collet |
| Max. RPM | 80 |
| Max. Capacity | 42 mm (1.65") |
| Piston Area | 66cm² (10.2in²) |
| Mounting Bolts | 4H-M10 ( front ) |
| Air Pressure | 10-30kg/cm² ( 142-427psi ) |
| Gripping Force | 5569 kgf@30kg/cm² (12277 lbf@100psi) |
| Net Weight | 9.7 kgs ( 21.4 lbs ) |
