- Built in rotary cylinder, free from draw bar and rotary cylinder
- Work with most popular collet, easy to find replacement or repair in local
- Double piston, provide more clamping force in limited O.D
- Import selected deep groove ball bearing, stable and tough
- Self-lock design on the close side to offer higher safety
- High resistance to coolant fluid and cutting chips (Fluid and dust proof when air feeding in)
- Please usd 5um filter in F.R.L units
- Easy installation, no specialist required
 |
 |
 |
|---|---|---|
| 5μm Filter. Applies in all series of JAP100/JAP200 a set go along with packing |
Applies : On Lathe | Applies : On 4/5 axis rotary table |

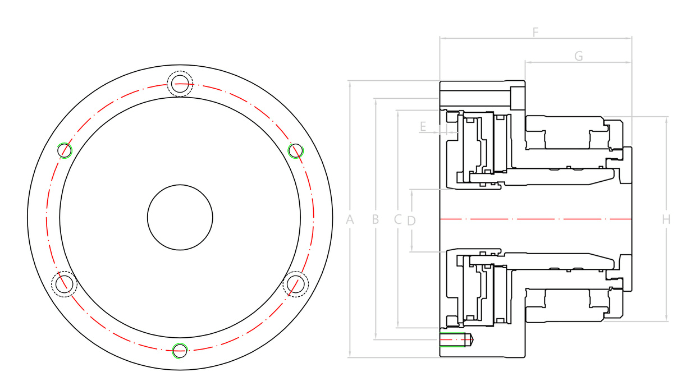

| JAP207-B42 | JAP208-B60 | JAP210-B80 | |
|---|---|---|---|
| A | 197(7.76") | 214(8.43") | 247.5(9.74") |
| B (P.C.D.) | 172(6.77") | 186(7.32") | 226(8.9") |
| C | 155(6.1") | 170(6.69") | 200(7.87") |
| D | 42(1.65") | 60(2.36") | 80(3.15") |
| E | 5(0.2") | 5.5(0.22") | 6(0.24") |
| F | 138(5.34") | 147(5.79") | 151.5(5.96") |
| G | 77(3.03") | 84.5(3.33") | 80.5(3.17") |
| H | 146(5.75") | 174(6.85") | 197(7.76") |
| Mounting Bolts | "3H-M10 ( front )+ 3H-M10 ( rear )" | "3H-M10 ( front )+ 3H-M10 ( rear )" | 6H-M10 ( front ) |
| Collet | B42 Collet | B60 Collet | B80 Collet |
| Max. RPM | 2500 | 2000 | 1500 |
| Air Pressure | 3-8kg/cm² (43-114 psi) | 3-8kg/cm² (43-114 psi) | 3-8kg/cm² (43-114 psi) |
| Max. Capacity | 42 mm (1.65") | 60 mm (2.36") | 80 mm (3.15") |
| Piston Area | 280cm² | 304cm² | 356cm² |
| Gripping Force | 4740 kgf@7kg/cm² (10428 lbf@100psi ) | 5150 kgf@7kg/cm² (11330 lbf@100psi ) | 6030 kgf@7kg/cm² (12060 lbf@100psi ) |
| Net Weight | 17.2 kgs ( 37.9 lbs ) | 21.9 kgs ( 48.3 lbs ) | 32 kgs ( 70.5 lbs ) |
