Chuck Features

Ø  Open and close via swing the wrench

Ø  Draw back to grip, offer high repeat concentricity

Ø  Works with 5C collet/16C collet and SK42(42BZI) rubber collet

Ø  15% smaller and lighter than regular scroll manual collet chuck

Ø  Pivot holes can be easy to drive with any rod by 10mm

Ø  Support to work on a rotary table

Ø  All parts chrome coating, highly fluid-proof and rust-proof

Ø  5C and 16C support expanding to grip

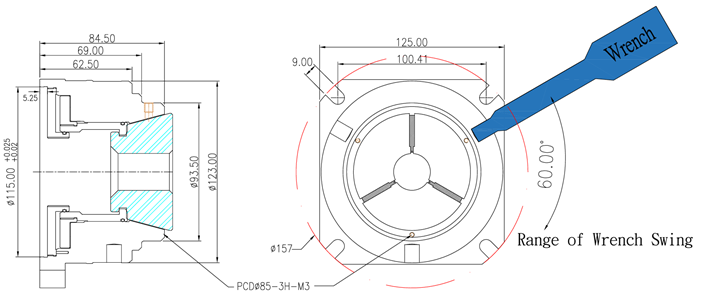

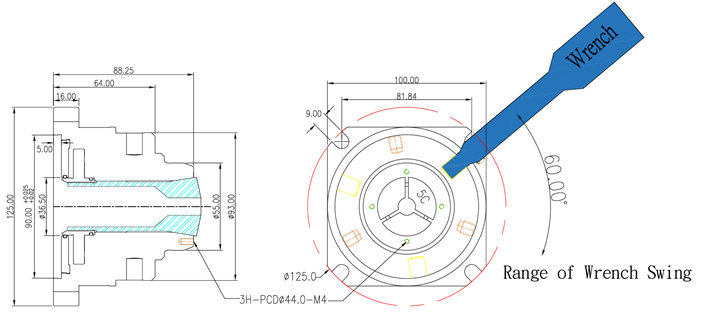

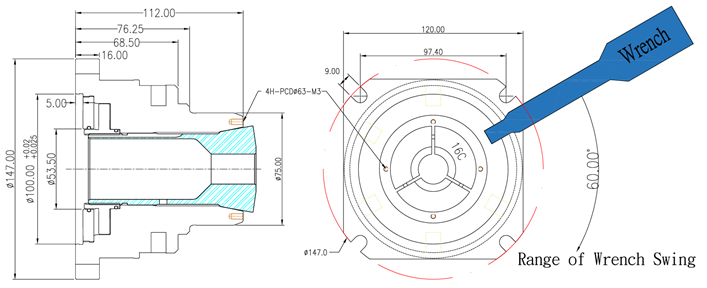

Chuck dimensions

 JM5-5C

JM6-16C

JM6-42BZI

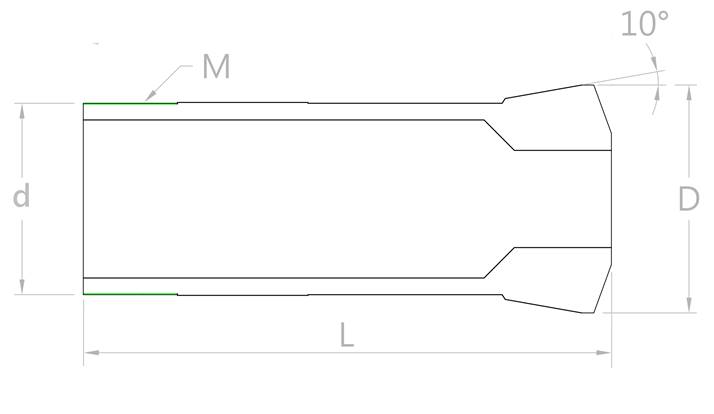

ColletS

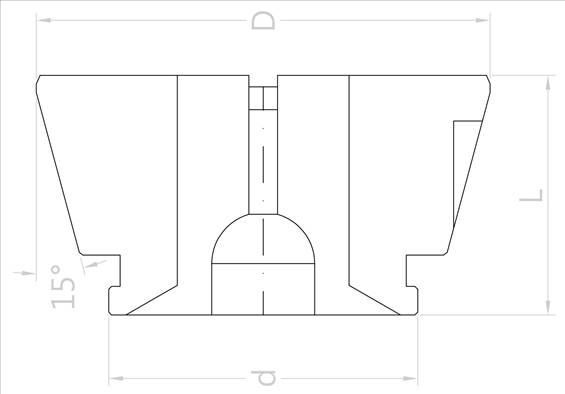

42BZI(SK-42)Rubber Collet
