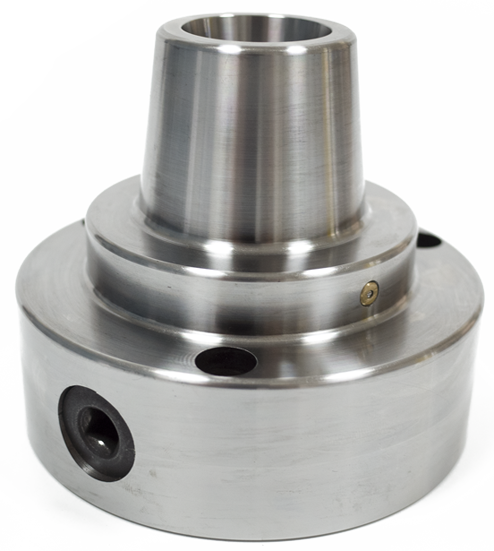

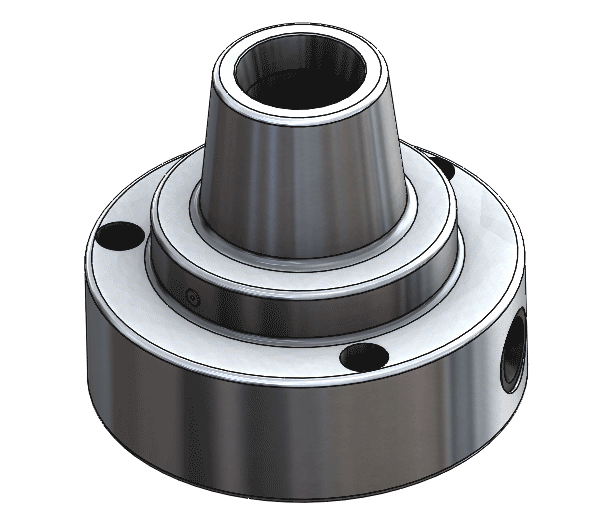

JMT-5C Manual
chuck
|
|
Product
Features ◢ They
can be used for all turning, facing, boring, grinding, and milling operations
on center lathes and grinding machines. ◢ The
simple key operated scroll provides a uniform, distortion free clamping of
the workpiece and low collet exchange time. |

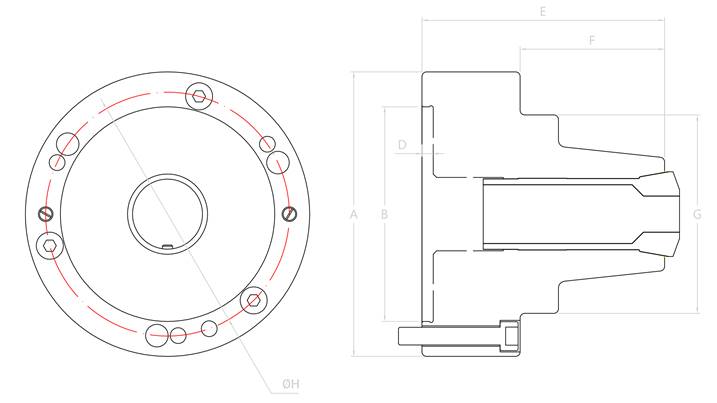

Dimensions and Specifications
|
|||||||||
( unit : mm ) |
|||||||||
A |
B |
C |
D |
E |
F |
G |
H |
Mounting |
Net Weight |
126 ( 4.96" )
|
95 ( 3.74" ) |
26 ( 1.02" ) |
5 (0.2" ) |
107.5 ( 4.23" ) |
64 ( 2.52" ) |
87.9 ( 3.46" ) |
108 ( 4.25" ) |
3H-M8 |
4.1 kgs ( 9.0 lbs ) |
|
|||||||
( unit : mm ) |
|||||||

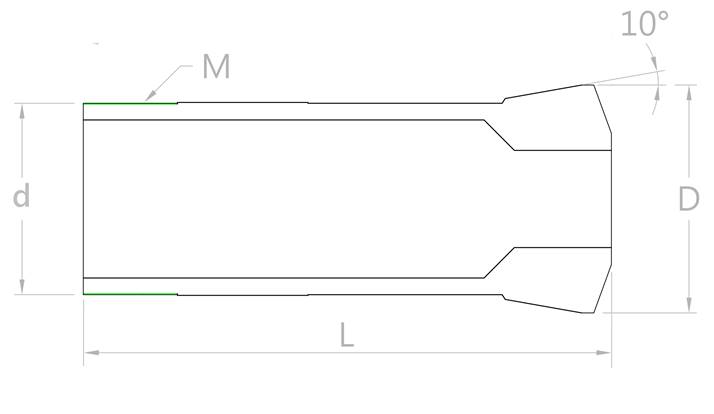

Draw-back collet |
Max. Capacity |
||||||
Model |
d |
D |
L |
M ( Thread ) |
Round |
Square |
Hexagon |
5C |
31.75 ( 1.25" ) |
37.5 ( 1.48" ) |
87 ( 3.43" ) |
M31.5x20T |
26 ( 1.02" ) |
19 ( 0.75" ) |
23 |

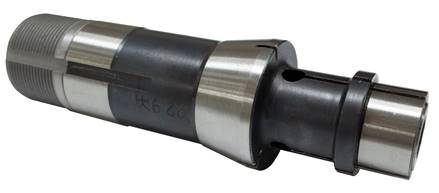

5C Expanding
Collet |
|
|
