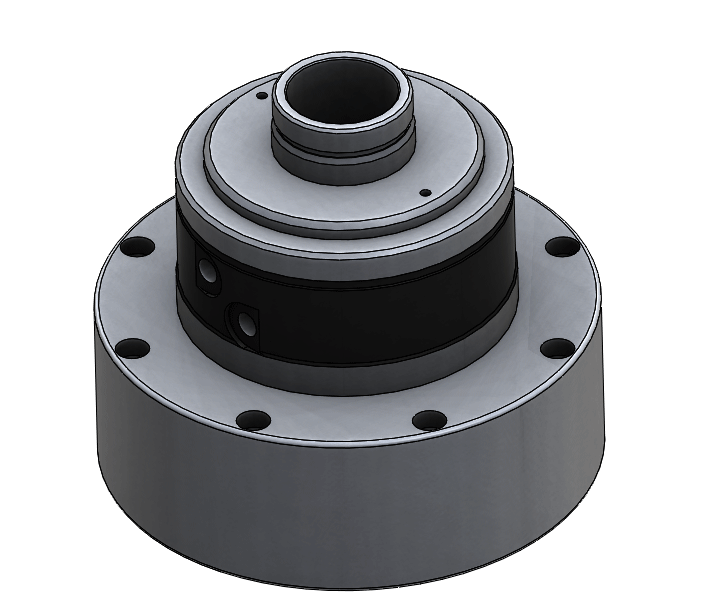

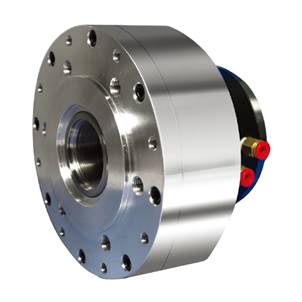

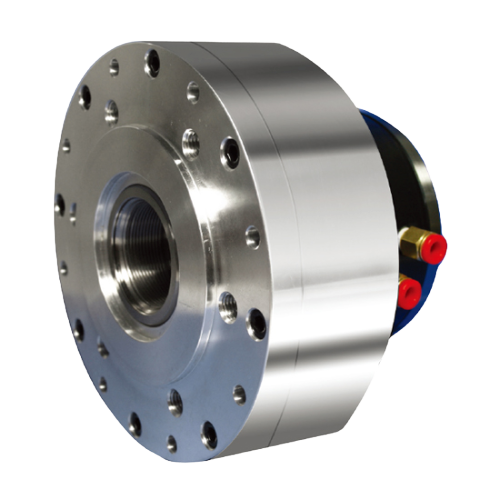

JAL Series
Pneumatic Cylinder
|
|
|
Product Features
◢ Open center air
cylinder,saving cost of hydraulic equipment
◢ Open center design allows bar parts gripping
◢ Adavnce bearing design:low temperature rising when operation
◢ Low air leakage
◢ Double piston design to offer high pulling force.(JA362)
◢ Plesae use
5um filter in F.R.L units
|
|
||||||
|

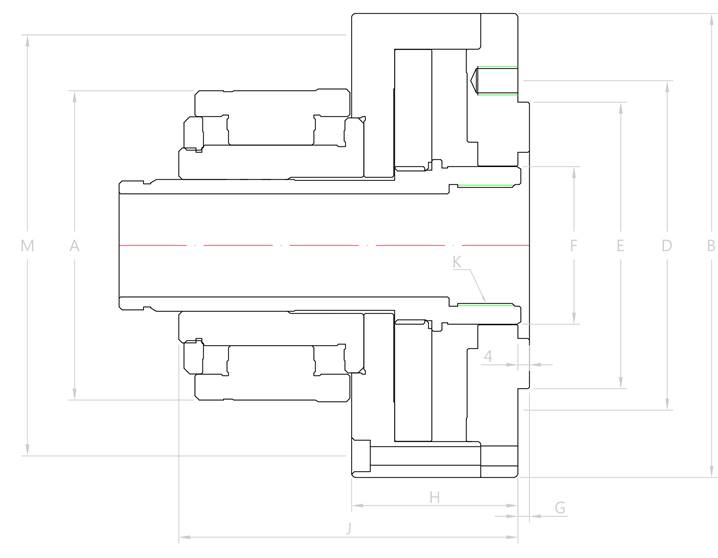

( unit : mm ) |
||||||
|
|
A |
B |
D ( P.C.D. ) |
E |
F |
G |
|
JAL-636 |
108 (4.25") |
162 (6.38") |
Ø115( 4.53" ) 6H-M10 |
100 (3.94") |
55 (2.17") |
0~12 (0"~0.47") |
|
JAL-362 |
175 (6.89") |
50 (1.97") |
-2~10 (-0.08"~0.39") |
|||
|
|
H |
J |
K ( for Drawtube ) |
M ( P.C.D ) |
Piston |
Through Hole |
|
JAL-636 |
58 (2.28") |
118 (4.65") |
M42xP1.5 |
Ø147( 5.79" ) 8H-M6 |
Single
Piston |
36
mm |
|
JAL-362 |
101 (3.98") |
164 (6.46") |
N/A |
Double
Piston |
|
|
Air Pressur |
Max. RPM |
Piston Stroke |
Piston Area |
Pulling Force |
Net Weight |
|
JAL-636 |
2-8 kg/cm2 ( 28.4-114 psi ) |
3600 |
12mm ( 0.47" ) |
123 cm2 ( 19.1 in2 ) |
775 kgf@7kg/cm2 ( 1705 lbf@100psi ) |
7.2 kgs ( 15.9 lbs ) |
|
JAL-362 |
287 cm2 ( 44.5 in2 ) |
1810 kgf@7kg/cm2 ( 3980 lbf@100psi ) |
9.3 kgs ( 20.5 lbs ) |
|
|
