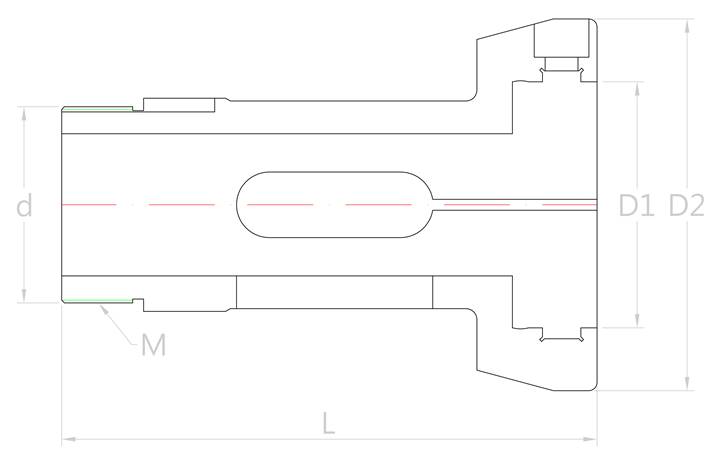

( unit : mm )

Rotary Power Chuck-Collet for Replacement

Model

d

Slope

L

D1

D2

M

JA5-25 / JH5-25

39

( 1.54" )

15°

98

( 3.86" )

45

( 1.77" )

68

( 2.68" )

M35.9x16T

JA7-40 / JH7-40

60

( 2.36" )

15°

120

( 4.72" )

65

( 2.56" )

94

( 3.70" )

M59x16T

JA7-70 / JH7-70

82

( 3.23" )

15°

135

( 5.31" )

105

( 4.13" )

136

( 5.35" )

M79.9x16T

JH9-90

102

( 4.02" )

15°

143

( 5.63" )

105

( 4.13" )

136

( 5.35" )

M99.8xP1.5

JH9-120

135

( 5.31" )

15°

151

( 5.94" )

140

( 5.51" )

168

( 6.61" )

M133x16T
