( unit : mm ) |
||||||||
|

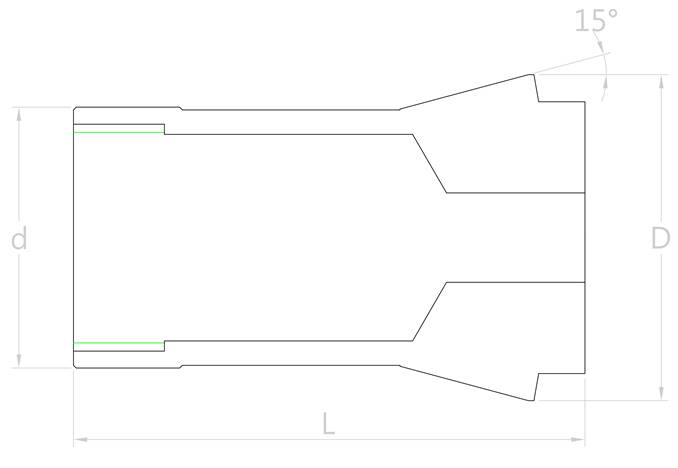

Push-Forward collet |
Max. Capacity |
|||||||
|
Model |
d |
L |
D |
Round |
Square |
Hexagon |
|
|
|
B42 ( 173E ) |
48 ( 1.89" ) |
94 ( 3.70" ) |
60 ( 2.36" ) |
44 ( 1.73" ) |
30.1 ( 1.19" ) |
37 ( 1.46" ) |
|
|
|
B60 ( 185E ) |
66 ( 2.60" ) |
110 ( 4.33" ) |
84 ( 3.31" ) |
61 ( 2.40" ) |
43 ( 1.69" ) |
52 ( 2.05" ) |
|
|
|
B80 ( 193E ) |
90 ( 3.54" ) |
130 ( 5.12" ) |
107 ( 4.21" ) |
80 ( 3.15" ) |
56.5 ( 2.22" ) |
69.2 ( 2.72" ) |
|
|
|
C-44 |
54 ( 2.13" ) |
87 ( 3.43" ) |
68 ( 2.68" ) |
47 ( 1.85" ) |
32 ( 1.26" ) |
38.1 ( 1.50" ) |
|
|
|
|
