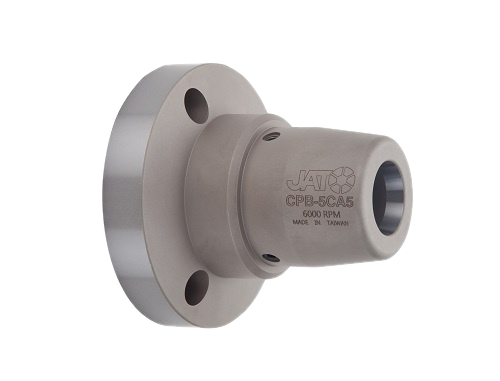

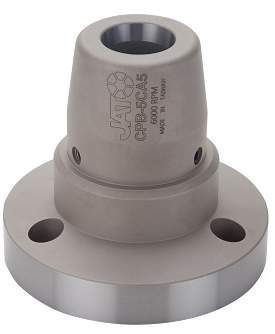

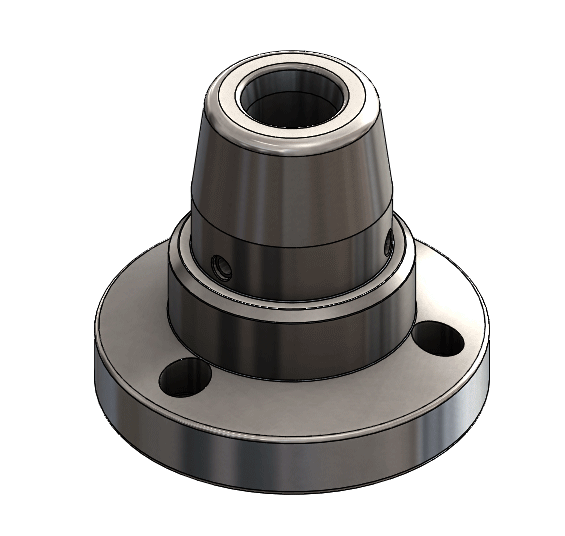

CPB Pull Back Collet Chuck
|
|
Product Features ◢ Adops 5C/16C collet ◢ 5C Collet:max. capacity 26mm ◢ 16C Collet:max. capacity 40mm ◢ Pull back design.High accuracy |

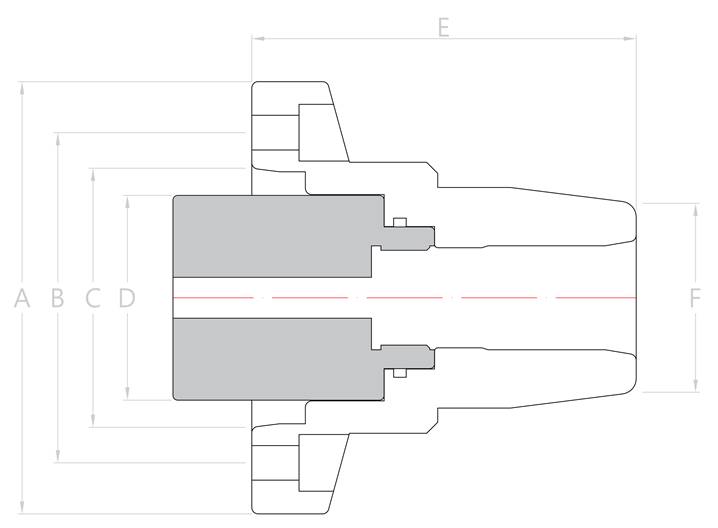

Dimensions and Specifications
*The grey part
shows in the drawing is a semi-ready draw-nut,the blank part is for user end
to rework according to their thread size of draw tube* |
|||||||
( unit : mm ) |
|||||||
|
Spindle Nose |
A |
B ( P.C.D. ) |
C |
D ( for
Drawtube ) |
E |
F |
CPB-5CA5 |
A2-5 |
137 ( 5.39" ) |
104.8 ( 4.13" ) |
82.6 ( 3.25" ) |
Max. M58 |
122 ( 4.80" ) |
60 ( 2.36" ) |
CPB-5CA6 |
A2-6 |
166 ( 6.54" ) |
133.4 ( 5.25" ) |
106.4 ( 4.16" ) |
Max. M65 |
||
CPB-16CA5 |
A2-5 |
137 ( 5.39" ) |
104.8 ( 4.13" ) |
82.6 ( 3.25" ) |
Max. M58 |
145 ( 5.71" ) |
80 ( 3.15" ) |
CPB-16CA6 |
A2-6 |
166 ( 6.54" ) |
133.4 ( 5.25" ) |
106.4 ( 4.16" ) |
Max. M65 |
|
Mounting Blots |
Collet |
Ref. Cylinder |
Max. Pull Force |
Max. RPM |
Net Weight |
CPB-5CA5 |
3H-M10 |
5C Collet |
JAL636 |
1800kgf ( 3968 lbf ) |
6000 |
4.2 kgs ( 9.3 lbs ) |
CPB-5CA6 |
3H-M12 |
5.9 kgs (
13.0 lbs ) |
||||
CPB-16CA5 |
6H-M10 |
16C Collet |
JAL362 |
2300kgf ( 5070 lbf ) |
5000 |
5.0 kgs ( 11.0
lbs ) |
CPB-16CA6 |
6H-M12 |
7.1 kgs ( 15.7
lbs ) |
|
|||||||
( unit : mm ) |
|||||||
Draw-back
collet |
Max.
Capacity |
||||||
Model |
d |
D |
L |
M ( Thread ) |
Round |
Square |
Hexagon |
5C |
31.75 ( 1.25"
) |
37.5 ( 1.48"
) |
87 ( 3.43"
) |
M31.5x20T |
26 ( 1.02"
) |
19 ( 0.75"
) |
23 |
16C |
48 ( 1.89"
) |
58 ( 0.28"
) |
114 ( 4.49"
) |
M47.5xP1.75 |
40 ( 1.57" ) |
28.2 ( 1.11"
) |
34.6 ( 1.36"
) |
If you meet the
regust to order a draw-nut from us,please download the sheet[spindle
and draw tube information] in the following link to fill all
nessessary information for us, we can set up a proper ready draw-nut for you. |
|
|
