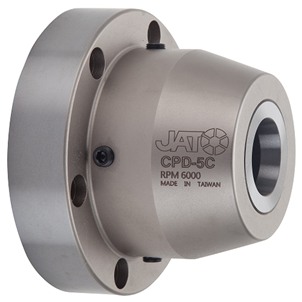

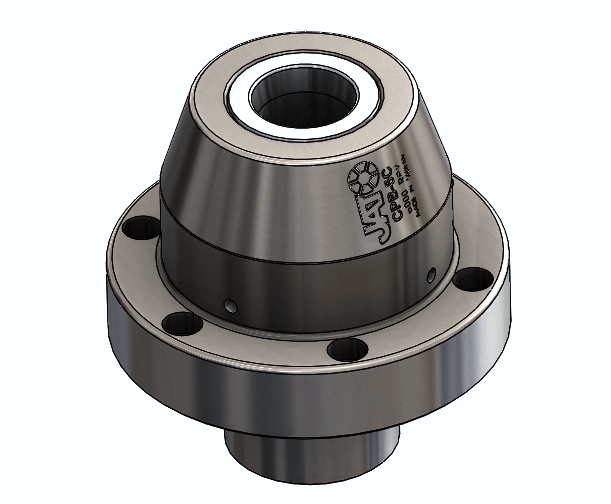

CPD Dead-Length Collet Chuck
|
|
Product

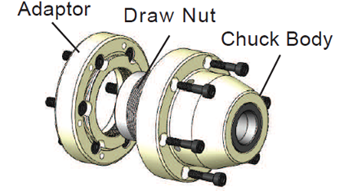

Features ◢ Adops
5C/16C collet ◢ 5C Collet:max. capacity 26mm ◢ 16C Collet:max. capacity 40mm |
|
JATO
offers a blank drawnut when shipping the chuck.
Customers could
thread the drawnut according to the drawtube of the machine.

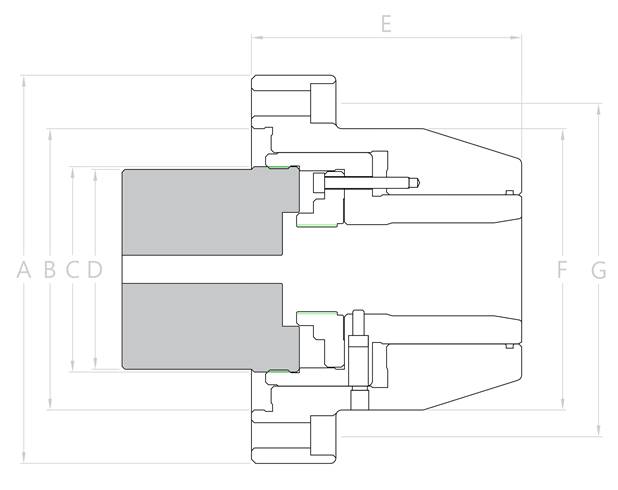

CPD Collet Chuck Dimension
*The grey part shows in the drawing is a semi-ready draw-nut,the blank
part is for user end to rework according to their thread size of draw tube* |
|||||||
(
unit : mm ) |
|||||||
Model |
A |
B |
C |
D |
E |
F |
G |
CPD-5C |
138 ( 5.43" ) |
100 ( 3.94" ) |
M73xP1.5 |
72 ( 2.83" ) |
96 ( 3.78" ) |
100 ( 3.94" ) |
118 ( 4.65" ) |
CPD-16C |
M91xP1.5 |
80 ( 3.15" ) |
118.5 ( 4.67" ) |
90 ( 3.54" ) |
Model |
Mounting Bolts |
Collet |
Ref. Cylinder |
Max. Pull Force |
Max. RPM |
Net Weight |
CPD-5C |
6H-M10 |
5C Collet |
JAL-636 |
1800 kgf ( 3968 lbf ) |
6000 |
5.4kgs (
17.6 lbs ) |
CPD-16C |
6H-M10 |
16C Collet |
JAL-362 |
2300 kgf ( 5070 lbf ) |
5000 |
7.0 kgs ( 22.0 lbs ) |

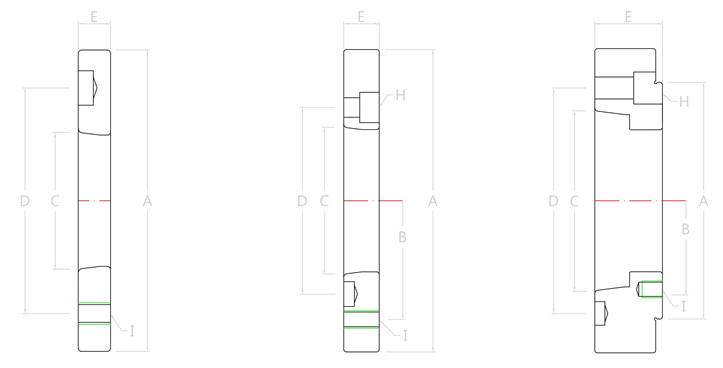

fig.1 fig.2 fig.3 ( unit : mm ) |
|||||||||
Model |
Fig |
Spindle Nose |
A |
B |
C |
D |
E |
H |
I |
CPD-5C |
fig.3 |
A2-4 |
100 |
118 |
63.5 |
82.6 |
25 |
M10 |
M8 |
fig.3 |
A2-5 |
100 |
118 |
82.5 |
104.8 |
31 |
M10 |
M8 |
|
fig.3 |
A2-6 |
100 |
118 |
106.3 |
133.4 |
34 |
M12 |
M8 |
|
CPD-16C |
fig.3 |
A2-5 |
100 |
118 |
82.5 |
104.8 |
31 |
M10 |
M8 |
fig.3 |
A2-6 |
100 |
118 |
106.3 |
133.4 |
34 |
M12 |
M8 |
|
|||||||
( unit : mm ) |
|||||||

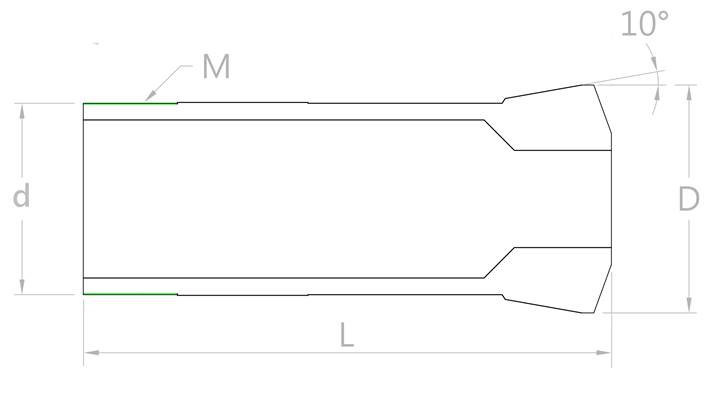

Draw-back collet |
Max. Capacity |
||||||
Model |
d |
D |
L |
M ( Thread ) |
Round |
Square |
Hexagon |
5C |
31.75 ( 1.25" ) |
37.5 ( 1.48" ) |
87 ( 3.43" ) |
M31.5x20T |
26 ( 1.02" ) |
19 ( 0.75" ) |
23 |
16C |
48 ( 1.89" ) |
58 ( 0.28" ) |
114 ( 4.49" ) |
M47.5xP1.75 |
40 ( 1.57" ) |
28.2 ( 1.11" ) |
34.6 ( 1.36" ) |
If you meet the regust to order a draw-nut
from us,please
download the sheet[spindle and draw tube information] in the
following link to fill all nessessary information for us, we can set up a
proper ready draw-nut for you. |
|
|
