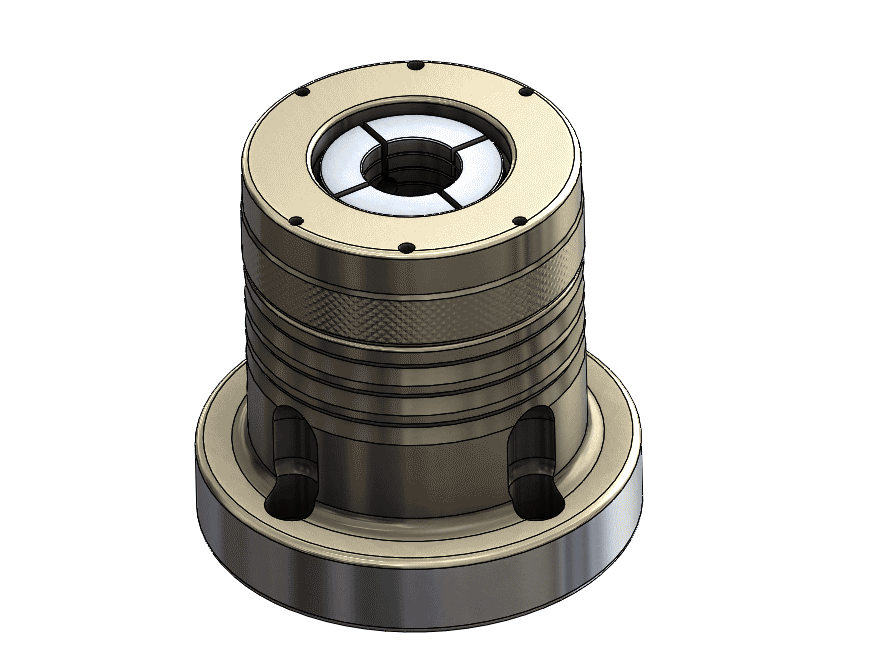

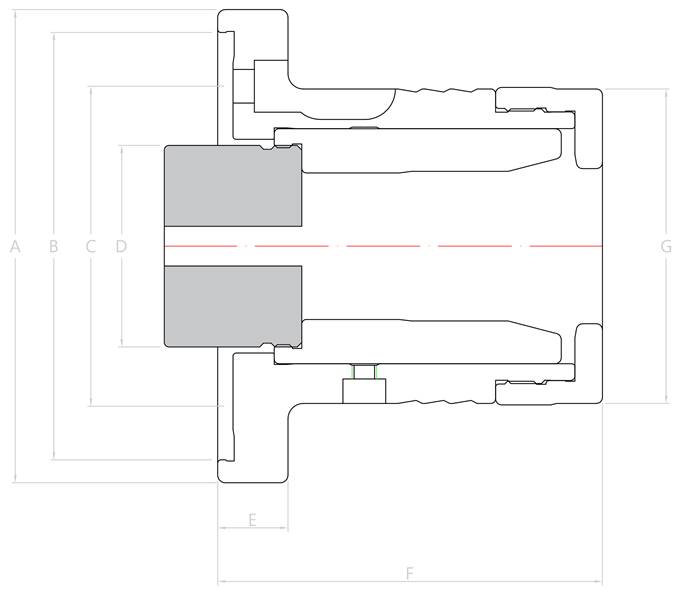

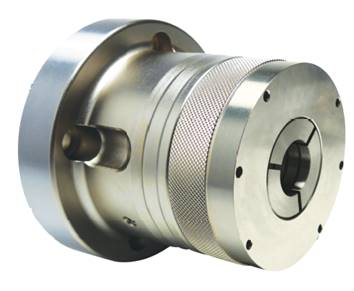

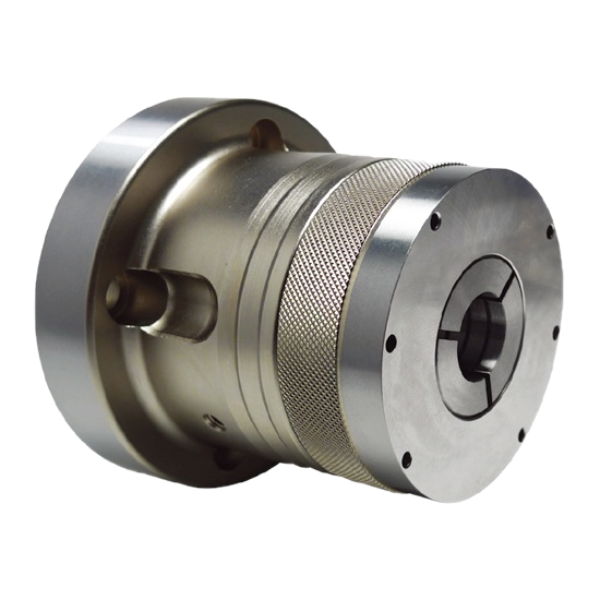

Available Models

◢ Work with push type collet as DIN6343 standard

◢ High speed and high rigidity

◢ Installation is compatible with through hole power chuck,share

flange adaptor as well

◢ Most use in turning machine,CNc lathes

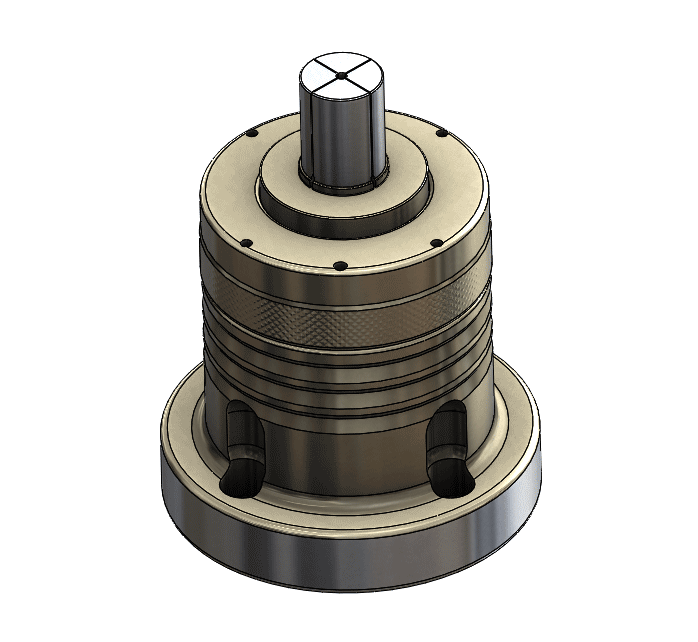

◢ CPC-44 can alter to expanding mandrel by install expanding kits

( unit : mm )

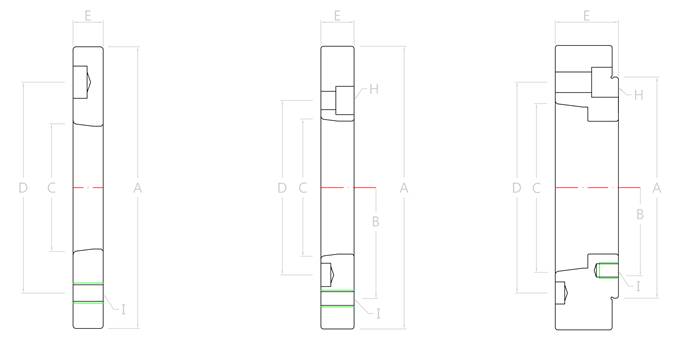

Adaptors Dimension

fig.1                            fig.2                         fig.3

( unit : mm )

Chuck Model

Fiugre

Spindle

Nose

A

B

C

D

E

H

I

CPC-42Z140

/CPC-44Z140

fig.2

A2-4

140

( 5.51" )

104.8

( 4.13" )

63.5

( 2.50" )

82.6

( 3.25" )

20

( 0.79" )

M10

M10

fig.1

A2-5

140

( 5.51" )

-

82.5

( 3.25" )

104.8

( 4.13" )

15

( 0.59" )

-

M10

fig.3

A2-6

140

( 5.51" )

104.8

( 4.13" )

106.3

( 4.19" )

133.4

( 5.25" )

35

( 1.38" )

M12

M10

CPC-60Z170

fig.2

A2-5

170

( 6.69" )

133.4

( 5.25" )

82.5

( 3.25" )

104.8

( 4.13" )

23

( 0.91" )

M10

M12

fig.1

A2-6

170

( 6.69" )

-

106.3

( 4.19" )

133.4

( 5.25" )

17

( 0.67" )

-

M12

fig.3

A2-8

170

( 6.69" )

133.4

( 5.25" )

139.7

( 5.50" )

171.4

( 6.75" )

45

( 1.77" )

M16

M12

CPC-80Z220

fig.2

A2-6

220

( 8.66" )

171.4

( 6.75" )

106.3

( 4.19" )

133.4

( 5.25" )

25

( 0.98" )

M12

M16

fig.1

A2-8

220

( 8.66" )

-

139.7

( 5.50" )

171.4

( 6.75" )

18

( 0.70" )

-

M16

fig.3

A2-11

220

( 8.66" )

171.4

( 6.75" )

196.8

( 7.75" )

235

( 9.25 )

54

( 2.13" )

-

M16

( unit : mm )

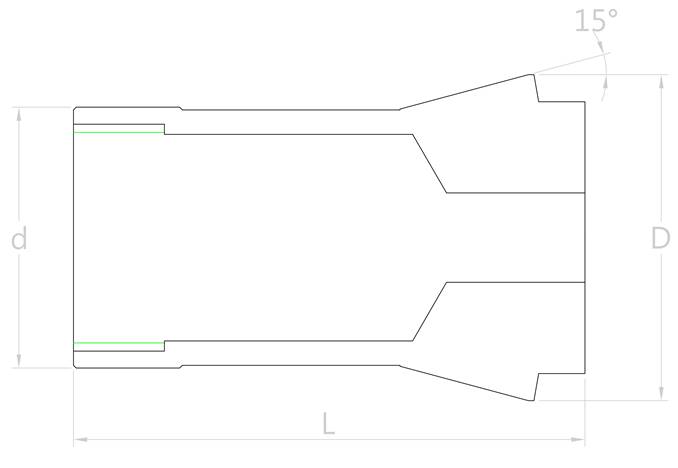

Push-Forward collet

Max. Capacity

Model

d

L

D

Round

Square

Hexagon

B42

( 173E )

48

( 1.89" )

94

( 3.70" )

60

( 2.36" )

44

( 1.73" )

30.1

( 1.19" )

37

( 1.46" )

B60

( 185E )

66

( 2.60" )

110

( 4.33" )

84

( 3.31" )

61

( 2.40" )

43

( 1.69" )

52

( 2.05" )

B80

( 193E )

90

( 3.54" )

130

( 5.12" )

107

( 4.21" )

80

( 3.15" )

56.5

( 2.22" )

69.2

( 2.72" )

C-44

54

( 2.13" )

87

( 3.43" )

68

( 2.68" )

47

( 1.85" )

32

( 1.26" )

38.1

( 1.50" )

when ordering a C-44I expanding collet,please download  the [C-44I expanding collet] in the following link to fill all nessessary information for us, we will proceed to redraw and combine with chuck and workpiece for you to review.

If you meet the regust to order a draw-nut from us,please download the sheet[spindle and draw tube information] in the following link to fill all nessessary information for us, we can set up a proper ready draw-nut for you.
