Diaphragm ChuckHOME / Product

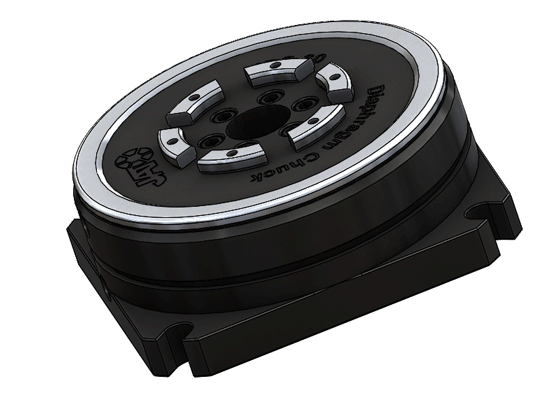

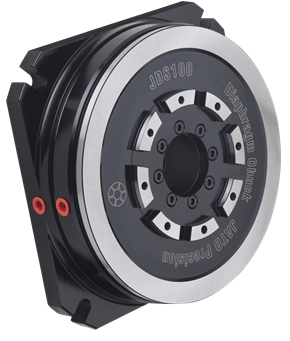

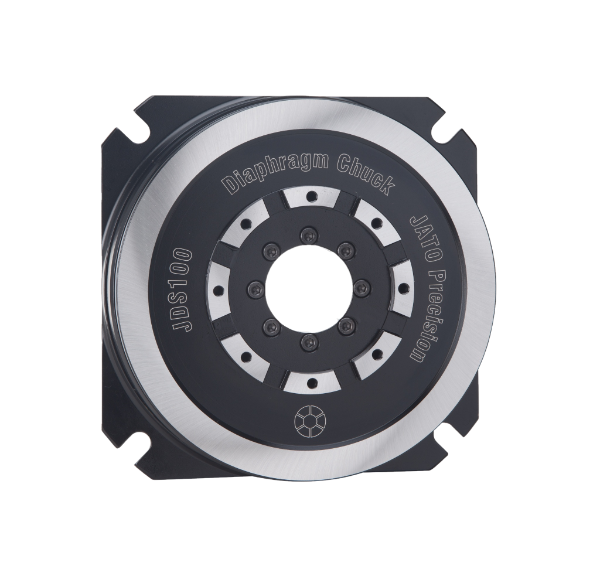

JDS Series Diaphragm
Stationary Chuck
|
|
|
|
Product Features ◢ Steel made body ◢ Big through hole 40mm ◢
Stepless
clamping force, correlated to input pressure ◢ Super long life ◢ Low base, neat composition, come with rough rigidity ◢
Applies to
clamping and expanding working jaws blind switch permitted ◢
High resistant
to cutting chips, fluid and dust |
|
|
|
|||||||
|

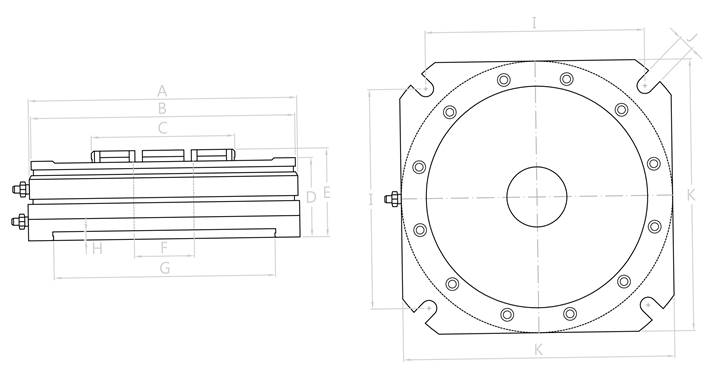

( unit : mm ) |
|||||||
|
|
A |
B |
C |
D |
E |
F (Through Hole) |
G |
|
JDS-60 |
118 ( 4.65" ) |
115 ( 4.53" ) |
60 ( 2.36" ) |
44.5 ( 1.75" ) |
48 ( 1.89" ) |
20 ( 0.79" ) |
90 ( 3.54" ) |
|
JDS-100 |
188 ( 7.40" ) |
185 ( 7.28" ) |
100 ( 3.94" ) |
55 ( 2.17" ) |
59.5 ( 2.34" ) |
40 ( 1.65" ) |
155 ( 6.10" ) |
|
|
H |
I |
J |
K |
Operation Pressure |
Jaw |
Net Weight |
|
JDS-60 |
4 ( 0.16" ) |
97 ( 3.82" ) |
9 ( 0.35" ) |
118 ( 4.65" ) |
0.5-7kg/cm2 ( 7-100 psi ) |
JD-60 |
3.5 kgs ( 7.7 lbs ) |
|
JDS-100 |
5 ( 0.20" ) |
153 ( 6.02" ) |
11 ( 0.43" ) |
190 ( 7.48" ) |
0.5-7kg/cm2 ( 7-100 psi ) |
JD-100 |
10 kgs ( 22 lbs ) |
|
|
||||||||
|

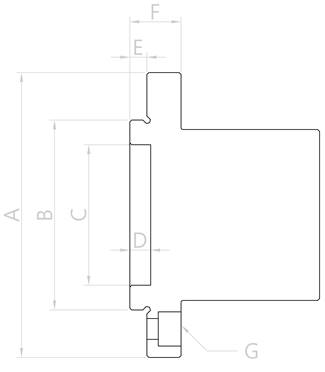

( unit : mm ) |
||||||||
|
Model |
A |
B |
C |
D |
E |
F |
G |
Jaw Split |
|
JD-60 |
65 ( 2.56"
) |
52 ( 2.05"
) |
45 (
1.77" ) |
32 ( 1.26"
) |
4 ( 0.15" ) |
12 ( 0.47" ) |
Ø52-M5 |
6 |
|
JD-100 |
105 ( 4.13"
) |
90 ( 3.54"
) |
80.2 ( 3.16"
) |
65 ( 2.56"
) |
5.5 ( 0.22" ) |
14 ( 0.55" ) |
Ø90-M5 |
8 |
|
|
