Diaphragm ChuckHOME / Product
|
|
|
||||||||||
|

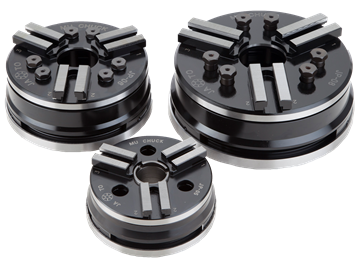

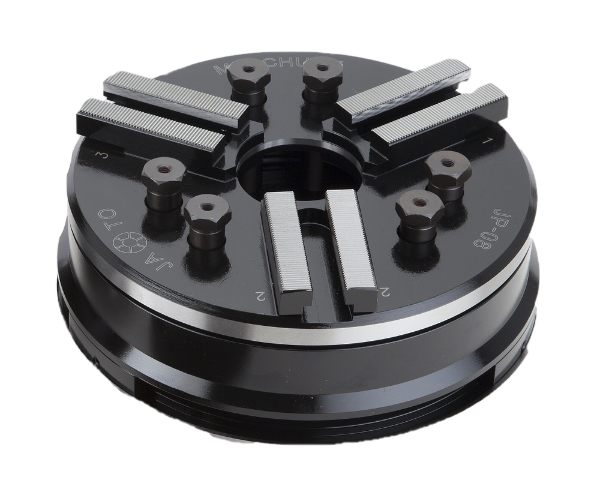

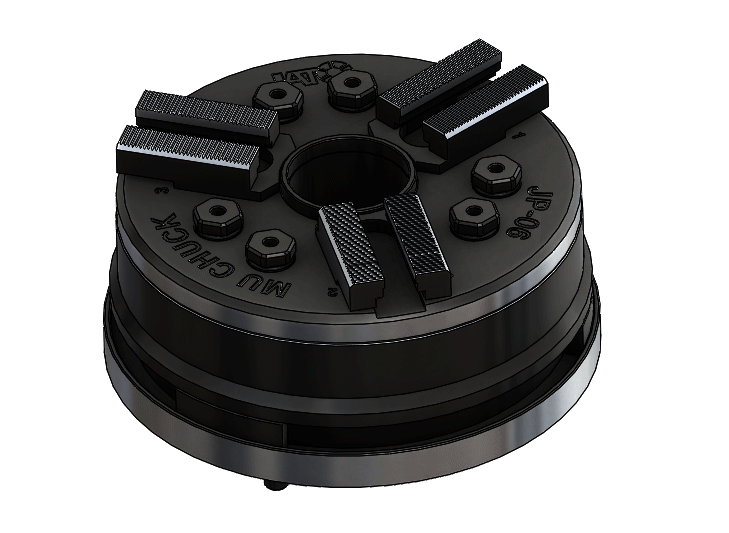

JP Series High Speed Diaphragm Chuck ◢ 0.005mm
repeatability ◢ Anti centrifugal
force design. Clamping force
remains high in high R.P.M. ◢ Integrated dynamic-balancing-weights for fine balance
adjustment ◢ No sliding parts
to wear out.Clamping force/stroke is proportional
to actuating force. ◢ Ideal
for fragile parts, or thin-wall parts clamping. |
JPL Series Diaphragm
Chuck for Grinders ◢ 0.005mm repeatability ◢ Compact size. Light weighted. ◢ Special for precision
grinders ◢ No sliding parts to wear out. ◢ Clamping force/stroke is proportional to actuating force. ◢ Ideal for fragile parts, or
thin-wall parts clamping. |
||||||||||
|
|
|||||||||||
|
|
|||||||||||
|

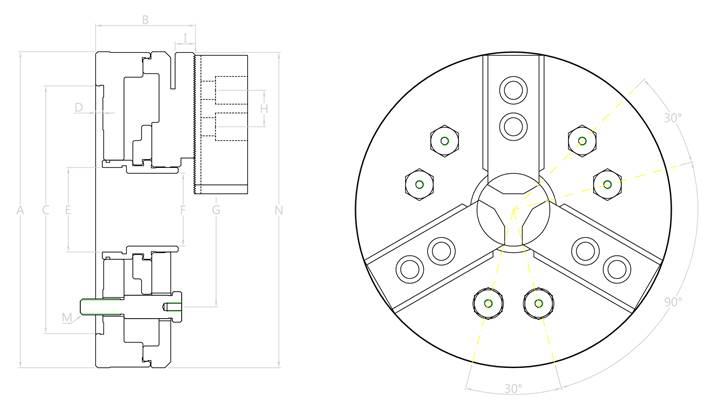

( unit : mm ) |
|||||||||||
|
JP
Series |
|||||||||||
|
|
A |
B |
C |
E |
D |
||||||
|
JP-05 |
147
( 5.79" ) |
68
(
2.68" ) |
110
( 4.33" ) |
M40xP1.5 |
4 (
0.16" ) |
||||||
|
JP-06 |
182
( 7.17" ) |
87.5
( 3.44" ) |
140
( 5.51" ) |
M55xP2.0 |
5 (
0.2" ) |
||||||
|
JP-08 |
232
( 9.13" ) |
98
(
3.86" ) |
170
( 6.69" ) |
M60xP2.0 |
|||||||
|
JP-10 |
267
( 10.51" ) |
105 (
4.13" ) |
220
( 8.66" ) |
M85xP2.0 |
|||||||
|
|
F |
G(P.C.D.) |
H |
I |
M |
N |
|||||
|
JP-05 |
33 (
1.30" ) |
82.6 (
3.25" ) |
14
( 0.55" ) |
13
(
0.51" ) |
M10x3 |
136 (
5.35" ) |
|||||
|
JP-06 |
44 (
1.73" ) |
104.8
( 4.13" ) |
20
( 0.79" ) |
15.5
( 0.61" ) |
M10x6 |
170.5 (
6.71" ) |
|||||
|
JP-08 |
50 (
1.97" ) |
133.4
( 5.25" ) |
25
( 0.98" ) |
17
(
0.67" ) |
M12x6 |
217 (
8.54" ) |
|||||
|
JP-10 |
75 (
2.95" ) |
171.4
( 6.75" ) |
30
( 1.18" ) |
M16x6 |
256 (
10.08" ) |
||||||
|
|
|||||||||||||||||||||||||||||||||||
|
|
|
|||||||||||||||||||||||||||||||||||
|

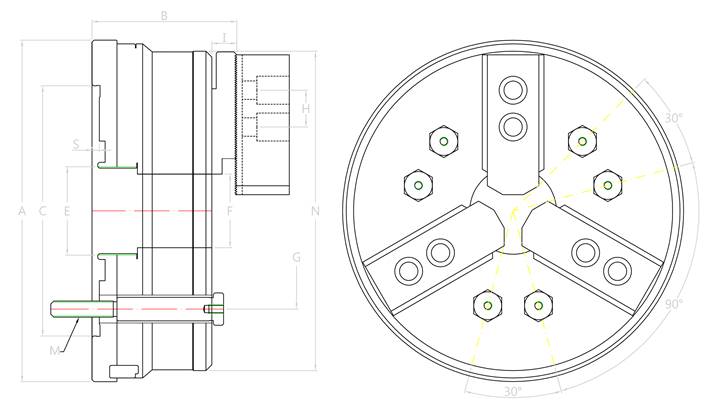

( unit:mm ) |
|
|||||||||||||||||||||||||||||||||||
|
JPL Series |
|
|||||||||||||||||||||||||||||||||||
|
|
A |
B |
C |
D |
E |
F |
|
|||||||||||||||||||||||||||||
|
JP-06L |
182 ( 7.17" ) |
87.5 ( 3.44" ) |
140 ( 5.51" ) |
5 ( 0.20" ) |
M55xP2.0 |
44 ( 1.73" ) |
|
|||||||||||||||||||||||||||||
|
JP-08L |
217 ( 8.54" ) |
68.5 ( 2.70" ) |
170 ( 6.69" ) |
M60xP2.0 |
50 ( 1.97" ) |
|
||||||||||||||||||||||||||||||
|
|
G(P.C.D.) |
H |
I |
M |
N |
|||||||||||||||||||||||||||||||
|
JP-06L |
104.8 ( 4.13" ) |
20 ( 0.79"
) |
15.5 ( 0.61"
) |
M10x6 |
170.5 ( 6.71"
) |
|||||||||||||||||||||||||||||||
|
JP-08L |
133.4 ( 5.25" ) |
25 ( 0.98" ) |
17 ( 0.67"
) |
M12x6 |
220 ( 8.66"
) |
|||||||||||||||||||||||||||||||
|
|
Max RPM |
Max Axial Force |
Adaptor size |
Net Weight |
|
JP-06L |
600 |
2250 kgf ( 4960 lbf ) |
Flat 140mm A2-5/A2-6 |
5.5 kgs |
|
JP-08L |
600 |
3500 kgf ( 7716 lbf ) |
Flat 170mm A2-5/A2-6/A2-8 |
8.0kgs |
|
Applications ◢ Spindle
Grinding of DC Micro Motors ◢ Precise
Bush ◢ Lens of
Electronic Equipment ◢ Lens Frame
of Smartphone ◢ Ceramics
Grinding ◢ Cardiovascular
stent ◢ Laser
Carving, Laser Cutting, Laser Wielding ◢ Case of
Stylus ◢ Wafer
Board |

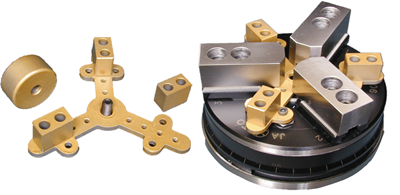

Example of Axial Stopper
|
If you meet the regust to order a draw-nut
from us,please
download the sheet[spindle and draw tube information] in the following
link to fill all nessessary information for us, we can set up a proper ready
draw-nut for you.
|
|
