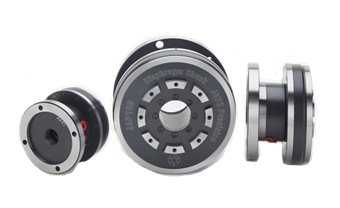

Product Features

◢ Center through hole design,allow to set air blow or stopper in axis way

◢ Highly-sealed chuck body,helps protect cutting chips,dust or coolant fluid from entering

◢ Air cylinder intergrated,no rotary cylinder and draw bar required

◢ Gentle and Precise clamping,best for fragile and thin-wall work piece

◢ Repeatability within 5 um

◢ Front-mount design make installation easy

◢ O.D / I.D clamping applies by only switch the jaw pad

◢ Please use 5um filter in F.R.L units

▲5μm Filter

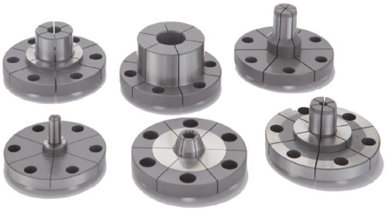

Applies in all series of JAP100/JAP200, a set go along with packing

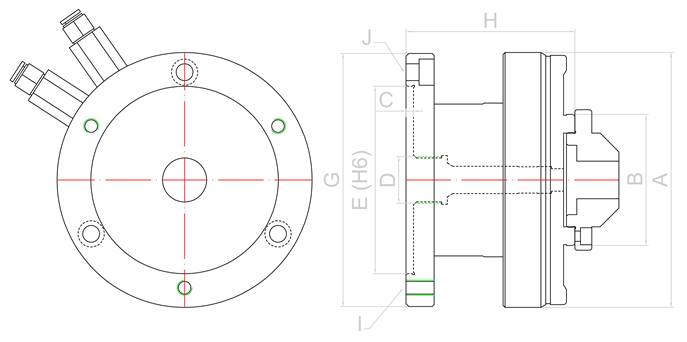

( unit : mm )

A

B

C

D

E

F(P.C.D.)

G

H

JAP-104

100

( 3.94" )

65

( 2.56" )

4.5

( 0.18" )

M21xP1.5

70

( 2.76" )

82

( 3.22" )

97

( 3.82" )

73

( 2.87" )

JAP-105-70

138

( 5.43" )

70

( 2.76" )

4

( 0.16" )

M25xP1.5

100

( 3.94" )

115

( 4.53" )

135

( 5.31" )

90

( 3.54" )

JAP-105-80

80

(3.15”)

M36xP2.0

JAP-106

164.5

( 6.48" )

100

( 3.94" )

6

( 0.24" )

M60xP1.5

130

( 5.12" )

147

( 5.79" )

167

( 6.57" )

107

( 4.21" )

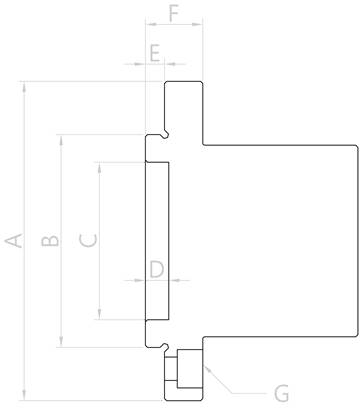

Mounting Blots

Max. RPM

Air Pressure

Jaw Opening

Through Hole

Net Weight

JAP-104

4H-M6 ( front )

4000

0.5-7kg/cm²

( 7-100psi )

0.20mm

( 0.008" )

10mm

( 0.39" )

2.6kgs

( 6.2lbs )

JAP-105-70

3H-M8 ( front )+
3H-M8 ( rear )

3400

12mm

( 0.47" )

6.0kgs

( 13.2lbs )

JAP-105-80

20mm

(0.78”)

6.5kgs

(14.3lbs)

JAP-106

3H-M10 ( front )+

3H-M10 ( rear )

2400

42mm

( 1.65" )

10.5kgs

( 20.9lbs )
