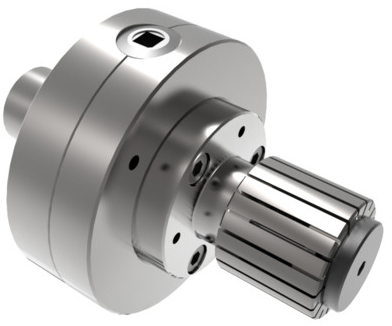

PQC Quick change Gripping solution

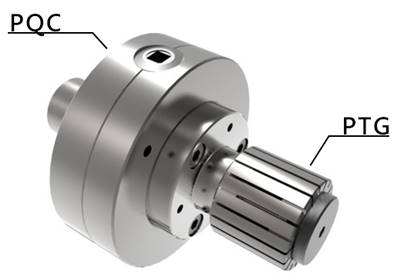

*  This  model  must  works  with  PTG  mandrel *

Introduction

▲Eliminate the need to remove your collet chuck.

▲Clamp in any collet chuck system capable of gripping the 38,10 mm gripping shank of the adapter unit.

▲Use with existing drawbar and nut operated mandrel assemblies or mandrels and sleeves can be supplied ranging in size from 12,0 to 82,0mm

▲Manufactured from highly durable high grade carbon steel,providing a rigid platform on which to mount the standard PTG range of drawbar mandrels.

▲Peripheral manual clamping adjustment through a square key driving a precision geared drive,precision ground square and concentric component accuracy will be within 0.012mm.

▲Can be loaded with a mandrel assembly offline saving valuable time and be moved from machine to machine as the production schedule demands.

▲Significant upgrade for any CNC single spindle lathe.

Product Features

Introducing the new”PTG Quick Change” from (external) collet operation to (internal) mandrel gripping solutions without the need to remove the collet chuck or any adapter plate,a significant time saving in itself.

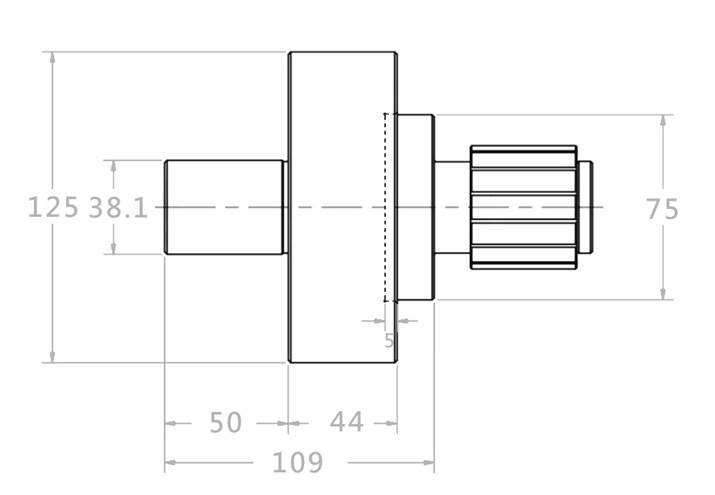

Dimension and Specifications
