Stationary ChuckHOME / Product

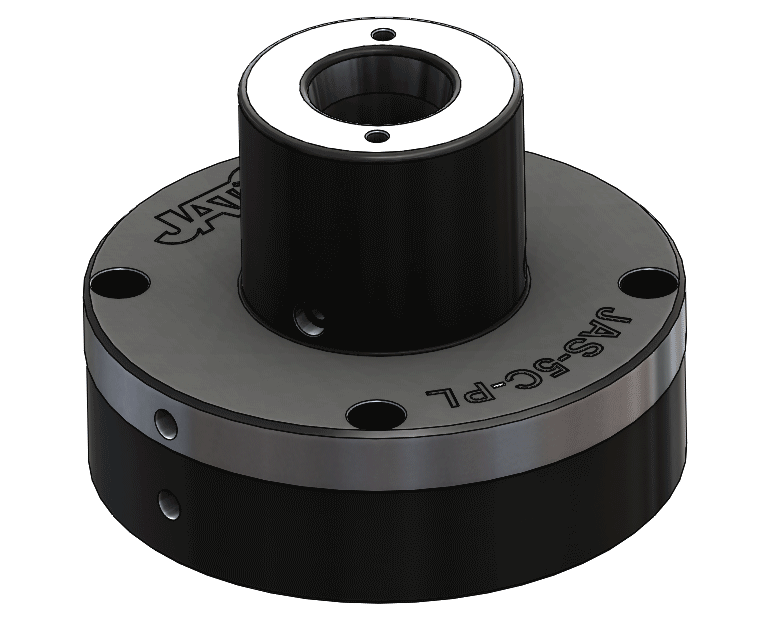

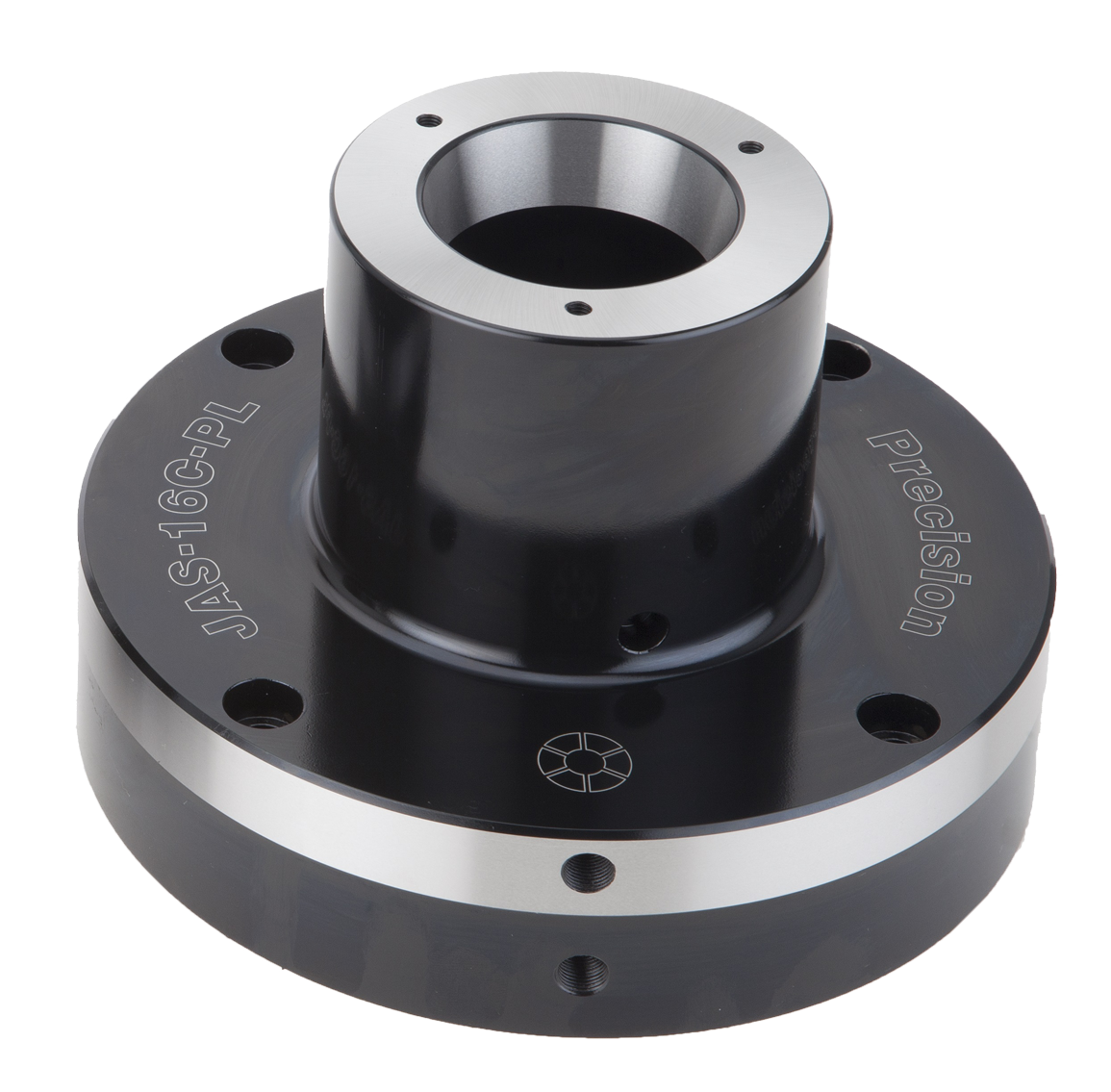

JAS Stationary Collet Chuck-Pull back

JAS-5C-PL / JAS-16C-PL




JAS-5C-PL/JAS-16C-PL

Stationary Collet Chuck-Pull Back



Product Features

▲ Steel body with hardness process

▲ High accuracy, high rigidity

▲ Long product-life

▲ Powerful clamping force

▲ High resistant to chips, fluid and dust

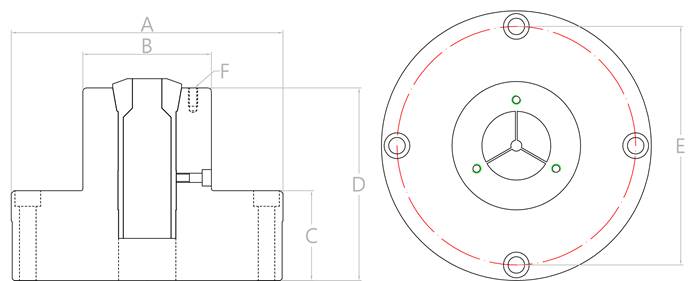

Dimension and Specifications



( unit : mm )



A

B

C

D

E

R

F(Bolts)

JAS-5C-PL

148

( 5.82" )

70

( 2.76" )

49

( 1.93" )

105

( 4.13" )

130

( 5.12" )

P.C.D.Ø50

3H-M5

4H-M8

JAS-16C-PL

178

( 7.00" )

90

( 3.54" )

49

( 1.93" )

126

( 4.96" )

158

( 6.22" )

P.C.D.Ø73

2H-M5





Collet

Input Pressure

Max. Capacity

Piston Area

Clamping Force

Net Weight

JAS-5C-PL

5C

3-8kg/cm2

( 43-114psi )

26mm

( 1.02" )

88cm2

( 13.7in2 )

2355kgf@7kg/cm2

( 5192 lbf@100psi )

6.6 kgs

( 14.6 lbs )

JAS-16C-PL

16C

40mm

( 1.57" )

131cm2

( 20.3in2 )

3410kgf@7kg/cm2

( 7518 lbf@100psi )

10.3 kgs

( 22.7 lbs )







( unit : mm )



Draw-back collet

Max. Capacity



Model

d

Slope

L

M(Thread)

D

Round

Square

Hexagon



5C

31.75

( 1.25" )

10°

87

( 3.43" )

M31.5x20T

37.5

( 1.48" )

26

( 1.02" )

19

( 0.75" )

23

( 0.91" )



16C

48

( 1.89" )

10°

114.0

( 4.49" )

M47.5xP1.75

58

( 2.28" )

40

( 1.57" )

28.2

( 1.11" )

34.6

( 1.36" )
