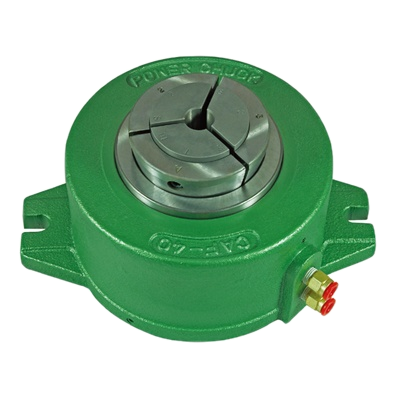

Product Features

◢  Cast iron body

◢  Classic model for Tapping and Drilling

◢  A very high CP ratio product

◢  Double Piston area,powerful clamping force

◢  High resistant to chips,fluid and dust

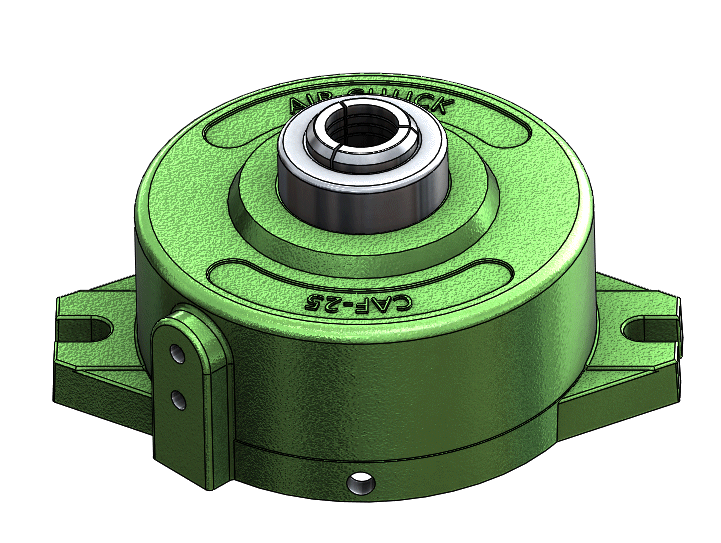

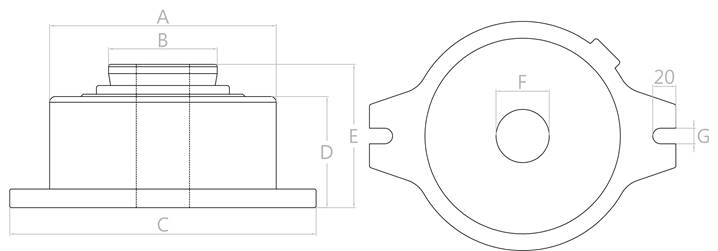

( unit : mm )

A

B

C

D

E

F

G

Collet/Jaw

CAF-25

162

( 6.38" )

60

( 2.36" )

222

( 8.74" )

73

( 2.87" )

103

( 4.06" )

26

( 1.02" )

13

( 0.51" )

YB-25 Collet

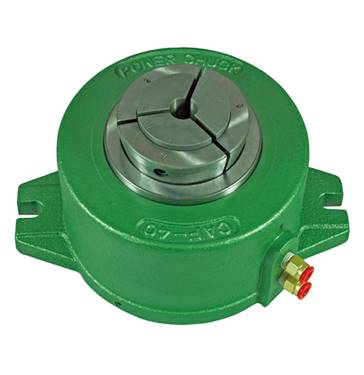

CAF-40

196

( 7.72" )

94

( 3.70" )

256

( 10.08" )

96

( 3.78" )

124

( 4.88" )

48

( 1.89" )

13.5

( 0.53" )

C-40 Jaw

CAF-70

216

( 8.50" )

136

( 5.35" )

290

( 11.42" )

103

( 4.06" )

135

( 5.31" )

68

( 2.68" )

C-70 Jaw

Air/

Hydraulic

Operating

Pressure

Max. Capacity

( Through/None )

Piston

Area

Gripping Force

Net

Weight

CAF-25

Air/

Hydraulic

3-15kg/cm²

( 43-214psi )

26mm/28mm

( 1.02"/1.10" )

130cm²

3185kgf@7kg/cm²

( 7022 lbf@100psi )

8.9 kgs

( 19.6 lbs )

CAF-40

3-10kg/cm²

( 43-142psi )

45mm/50mm

( 1.77"/1.97" )

192cm²

4700kgf@7kg/cm²

( 10362 lbf@100psi )

16.3 kgs

( 35.9 lbs )

CAF-70

5-10kg/cm²

( 71-142psi )

68mm/90mm

( 2.68"/3.54" )

242cm²

5930kgf@7kg/cm²

( 13073 lbf@100psi )

20.2 kgs

( 44.5 lbs )

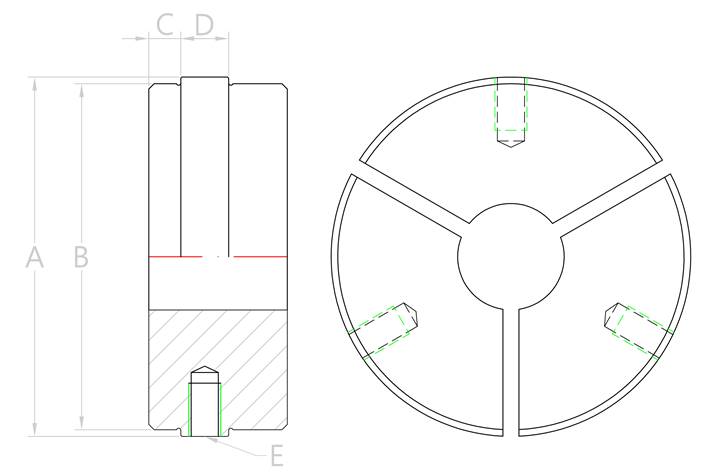

( unit : mm )

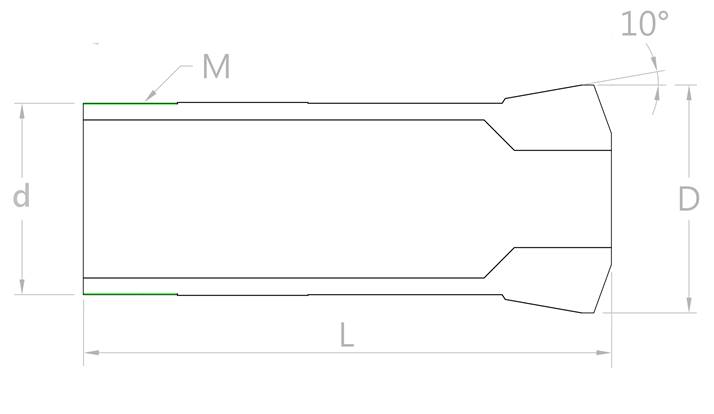

Draw-back collet

Max. Capacity

Model

d

D

L

M ( Thread )

Round

Square

Hexagon

YB-25

32

( 1.26" )

39.5

( 1.56" )

102

( 1.02" )

M31.5x20T

27

( 1.06" )

19

( 0.75" )

23
( 0.91" )
