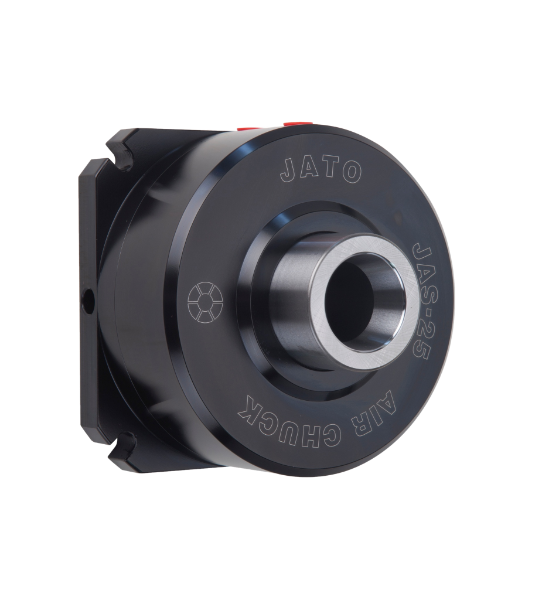

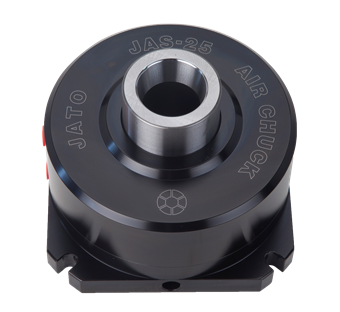

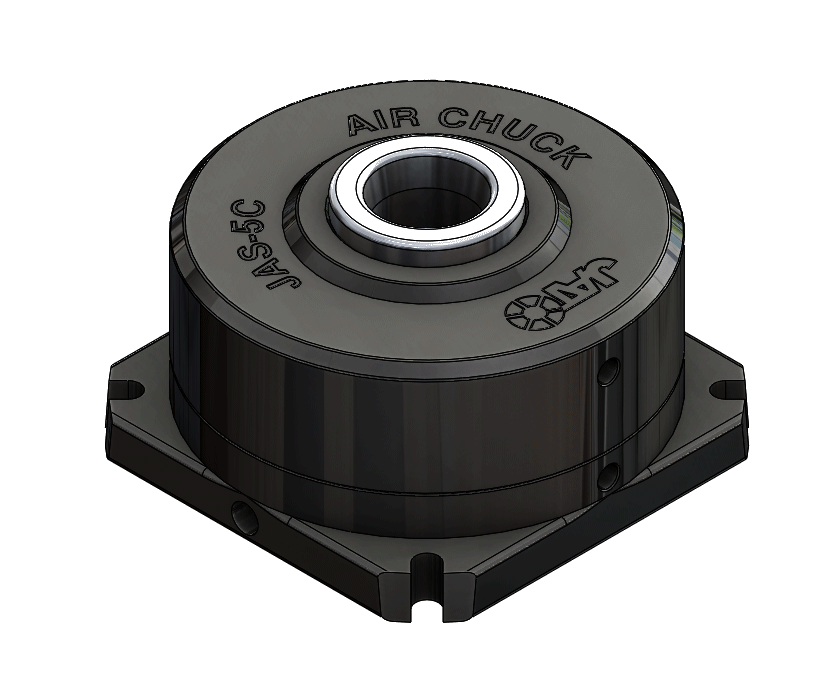

JAS/JHS Stationary Chuck
|
|
|
|
|
Product Features ◢ Cost effective stationary collet chuck. ◢ Dead length design:no axial movement. ◢ High accuracy.High rigidty.Long product
life. ◢ High resistant to cutting chips,fluid or
dust. |
|
|
|
▲CNC tapping centers |
▲Rotary SPMs (Special Purpode Machines) |
|
|
◢ Chuck force-opening design ensures no
workpart jamming |
||

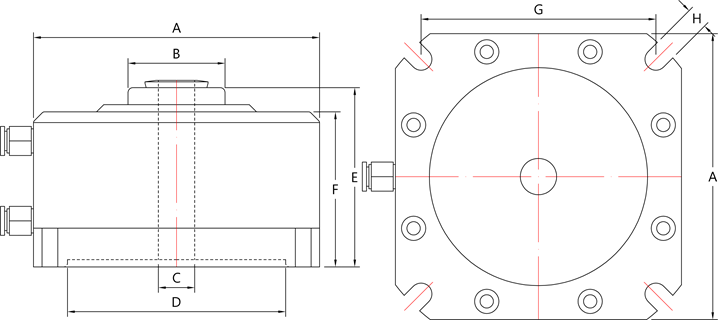

Dimension
and Specifications
|
|
|||||||||||||||
|
( unit : mm ) |
|||||||||||||||
|
Collet
Style Stationary Chuck |
|||||||||||||||
|
|
A |
B |
C |
D |
E |
F |
G |
Piston Area |
|||||||
|
JAS-15 |
118 ( 4.65" ) |
40 ( 1.57" ) |
15 ( 0.59" ) |
77 ( 3.03" ) |
64 ( 2.52" ) |
97 ( 3.82" ) |
9 ( 0.35" ) |
79cm2 (12.2in2 ) |
|||||||
|
JAS-25 |
144 ( 5.67" ) |
55 ( 2.17" ) |
26 ( 1.02" ) |
105 ( 4.13" ) |
74 ( 2.91" ) |
118 ( 4.65" ) |
112cm2 (17.4in2 ) |
||||||||
|
JAS-5C |
90 ( 3.54" ) |
||||||||||||||
|
|
Collet |
Air/Hydraulic |
Operating Pressure |
Max. Capacity (Through/ None) |
Gripping Force |
Net Weight |
|
JAS-15 |
YB-15 |
Air/Hydraulic |
3-15kg/cm2 ( 43-214psi ) |
15mm/18mm ( 0.60"/0.71" ) |
2135 kgf@7kg/cm2 ( 4706lbs@100psi ) |
4.7 kgs ( 11.0lbs ) |
|
JAS-25 |
YB-25 |
26mm/28mm ( 1.02"/1.10" ) |
2945 kgf@7kg/cm2 ( 6493lbs@100psi ) |
8.5 kgs ( 19.8lbs ) |
||
|
JAS-5C |
5C |
8.4 kgs ( 17.6lbs ) |
|
|
||||||||||||
|

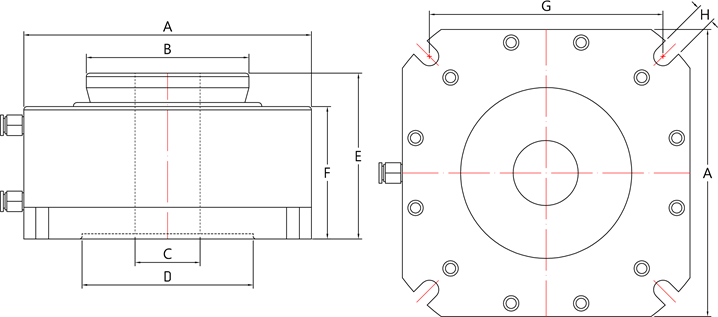

( unit : mm ) |
||||||||||||
|
Jaw
Style Stationary Chuck |
||||||||||||
|
|
A |
B |
C |
D |
E |
F |
G |
Piston Area |
||||
|
JAS-40 |
168 (6.61") |
95 (3.74") |
38 (1.50") |
97 (3.82") |
77.5 ( 3.05") |
136.5 (5.37") |
11 (0.43") |
240cm2 (37.2in2) |
|
|||
|
JHS-40 |
144 (5.67") |
94.5 ( 3.72") |
73 (2.87") |
118 (4.65") |
9 (0.35") |
86cm2 (13.3in2) |
|
|||||
|
JHS-70 |
190 (7.48") |
136 (5.35") |
68 (2.68") |
74 (2.91") |
153.5 (6.04") |
11 (0.43") |
110cm2 (17.1in2) |
|
||||
|
|
Jaw |
Air/Hydraulic |
Operating Pressure |
Max. Capacity (Through/ None) |
Gripping Force |
Net Weight |
|
JAS-40 |
C-40 |
Air/Hydraulic |
3-8 kg/cm2 ( 43-114psi ) |
38mm/50mm ( 1.50"/1.97" ) |
4065 kgf@7kg/cm2 ( 8962lbs@100psi ) |
12.1 kgs ( 26.7 lbs ) |
|
JHS-40 |
5-20 kg/cm2 ( 71-285psi ) |
4150 kgf@20kg/cm2 ( 9149lbs@285psi ) |
8.2 kgs ( 18.1 lbs ) |
|||
|
JHS-70 |
C-70 |
6-20 kg/cm2 ( 85-285psi ) |
68mm/90mm ( 2.68"/3.54" ) |
5360 kgf@20kg/cm2 ( 11817lbs@285psi ) |
12.7 kgs ( 28.0 lbs ) |
|
|
|||||||
|
( unit : mm ) |
|||||||
|

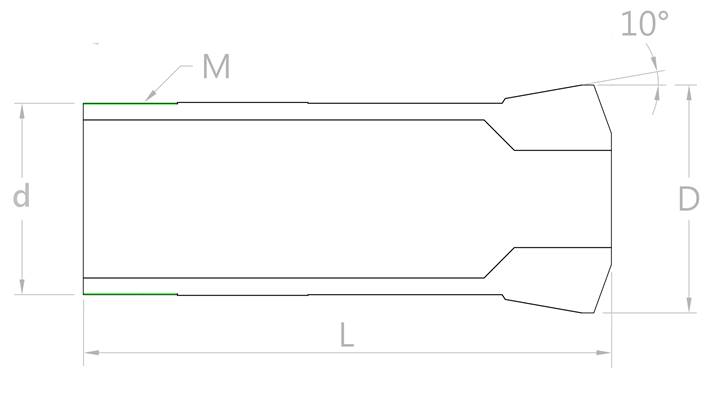

Draw-back collet |
Max. Capacity |
||||||
|
Model |
d |
D |
L |
M ( Thread ) |
Round |
Square |
Hexagon |
|
YB-15 |
19 ( 0.75"
) |
26 ( 1.02"
) |
76 ( 2.99"
) |
M18xP1.2 |
16.2 ( 0.64"
) |
10.6 ( 0.42"
) |
13 ( 0.51"
) |
|
YB-25 |
32 ( 1.26" ) |
39.5 ( 1.56" ) |
102 ( 1.02"
) |
M31.5x20T |
27 ( 1.06" ) |
19 ( 0.75"
) |
23 |
|
5C |
31.75 ( 1.25"
) |
37.5 ( 1.48"
) |
87 ( 3.43"
) |
M31.5x20T |
26 ( 1.02"
) |
19 ( 0.75"
) |
23 |
|
16C |
48 ( 1.89"
) |
58 ( 0.28"
) |
114 ( 4.49"
) |
M47.5xP1.75 |
40 ( 1.57" ) |
28.2 ( 1.11"
) |
34.6 ( 1.36"
) |
|
|
|||||||||
|

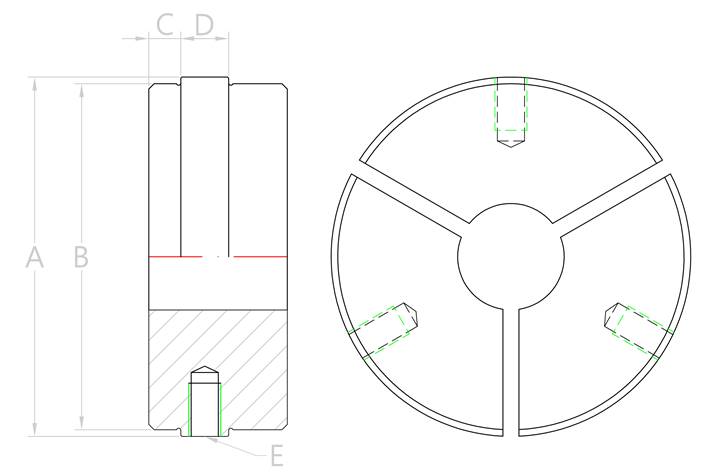

( unit : mm ) |
|||||||||
|
Model |
A |
B |
C |
D |
Bolts |
||||
|
C-25 |
47.5mm ( 1.87" ) |
45mm ( 1.77"
) |
3.5mm ( 0.13"
) |
7mm ( 0.28"
) |
M5x10 |
||||
|
C-40 |
67.5mm ( 2.66" ) |
65mm ( 2.56"
) |
6.0mm ( 0.24"
) |
9mm ( 0.35"
) |
M6x12 |
||||
|
C-70 |
107.5mm ( 4.23" ) |
105mm ( 4.13"
) |
6.0mm ( 0.24"
) |
9mm ( 0.35"
) |
M6x12 |
||||
|
C-120 |
143.5mm ( 5.65" ) |
140mm ( 5.51"
) |
6.0mm ( 0.24"
) |
9mm ( 0.35"
) |
M6x14 |
||||
|
|
|||||||||
|
Varies Type of Jaw
Pad |
|||||||||
|
|
|
|
|
|
|||||
|
Through Hole |
Step |
Serrated |
Square,Hexagon |
Extra Iength |
|||||
|
|
