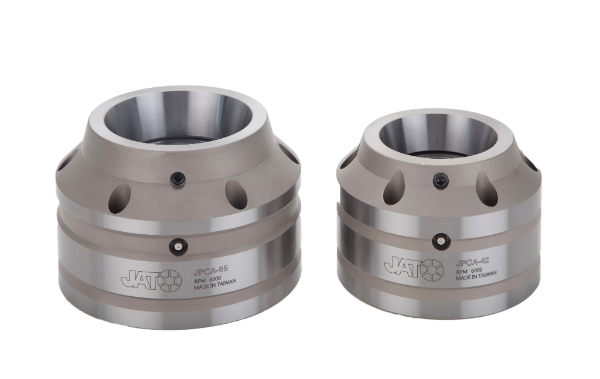

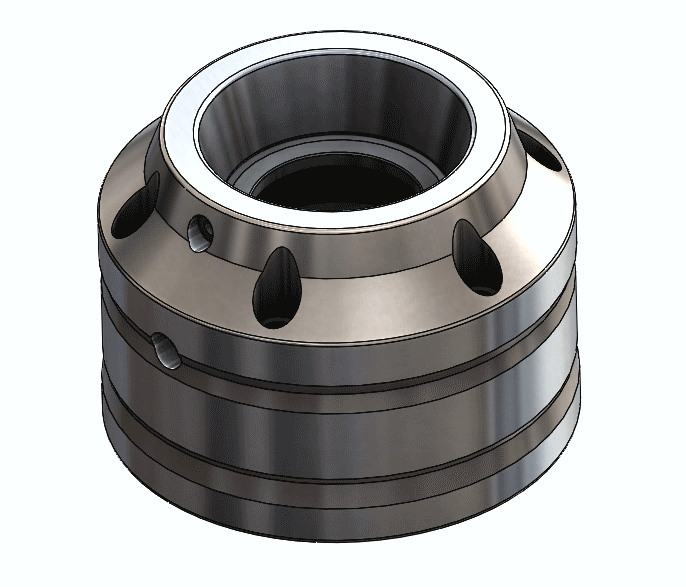

JPCA Power
Collet Chuck
|
|
Product
Features ◢ Work with rubber collet ◢ Parallel Clamp with over 1.5mm
range ◢ Really fast collet change with
wrench ◢ Adjustable/Removable stopper,can alter to air blow,sensing device ◢ Capable to handle heavy duty
work |
▲Replace the wrench with MQ42 |
|
|
▲Rubber Collet |
|
||||||||||||

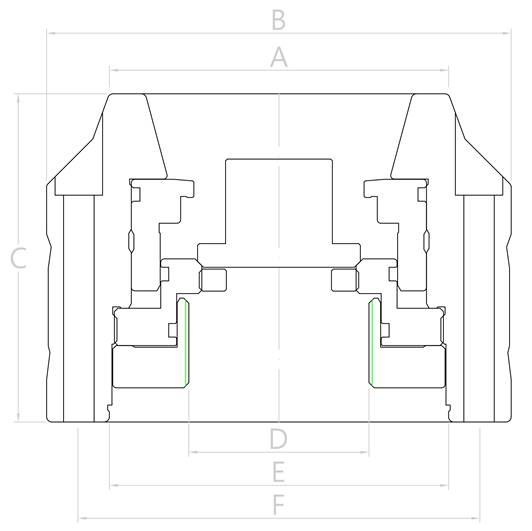

(unit : mm) |
||||||||||||
Model |
A |
B ( P.C.D ) |
C |
D Drawtube Max. |
E |
F |
Mounting Bolts |
|||||
JPCA-42Z100 |
100 ( 3.94" ) |
137 ( 5.39" ) |
97 ( 3.82" ) |
M55xP2.0 |
100 ( 3.94" ) |
118 ( 4.65" ) |
6H-M10 |
|||||
JPCA-65Z130 |
119 ( 4.69" ) |
164 ( 6.46" ) |
110.5 ( 4.35" ) |
M72xP1.5 |
130 ( 5.12" ) |
147 ( 5.79" ) |
6H-M12 |
|||||
|
||||||||||||
Model |
Max. Capacity |
Axial Stroke |
Clamping Range |
Gripping Force |
Max.Axial
Force |
MAX. RPM |
Net Weight |
|||||
JPCA-42Z100 |
42mm ( 1.65" ) |
5.0mm (0.20" ) |
±5.0mm |
7200
kgf ( 15873 lbf ) |
3200
kgf ( 7055 lbf ) |
6500 |
7.3 kgs ( 16.1 lbs ) |
|||||
JPCA-65Z130 |
65mm ( 2.55" ) |
9000 kgf ( 19842 lbf ) |
4000 kgf ( 8818 lbf ) |
5500 |
11 kgs ( 24.3 lbs ) |
|||||||
|
||||||||||||
|
|||||||

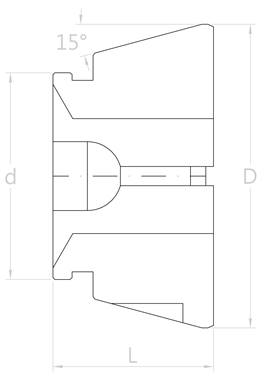

( unit : mm ) |
|||||||
Rubber Collet |
Max. Capacity ( Through
) |
|
|||||
Model |
d |
L |
D |
Round |
Square |
Hexagon |
Collet Wrench |
42BZI |
54 (
2.13" ) |
42 (
1.65" ) |
79.3 (
3.12" ) |
42 (
1.65" ) |
30.1 (
1.19" ) |
36.3 (
1.43" ) |
MV3200 |
65BZI |
80 (
3.15" ) |
53 (
2.09" ) |
99.5 (
3.92" ) |
65 (
2.56" ) |
45.9 (
1.81" ) |
56 (
2.20" ) |
MV6500 |
|
If
you meet the regust to order a draw-nut from us,please
download the sheet[spindle and draw tube information] in the
following link to fill all nessessary information for us, we can set up a
proper ready draw-nut for you. |
|
|
|
|
|
|
