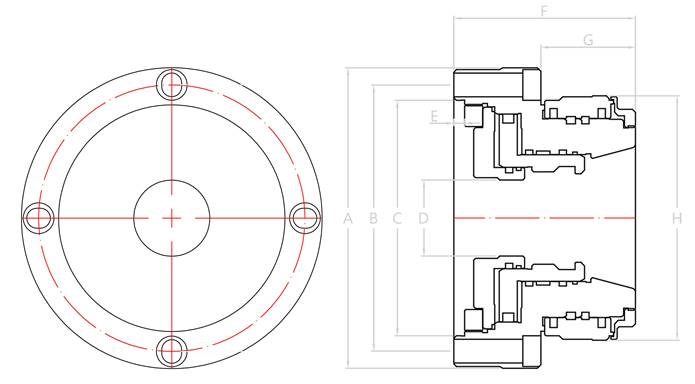

( unit : mm )

A

B

( P.C.D )

C

D

E

F

G

H

166

( 6.54" )

147

( 5.79" )

130

( 5.12" )

M43.5xp1.5

6

( 0.24" )

100

( 3.94" )

52

( 2.05" )

135

( 5.31")

Air/Hydraulic

Collet

Max. RPM

Max.

Capacity

Piston Area

Hydraulic

42BZI Collet

80

42mm

(1.65")

66cm²

(10.2in²)

Mounting

Bolts

Air Pressure

Gripping Force

Net Weight

4H-M10 ( front )

10-30kg/cm²

( 142-427psi )

5569 kgf@30kg/cm²

(12277 lbf@100psi)

9.7 kgs

( 21.4 lbs )

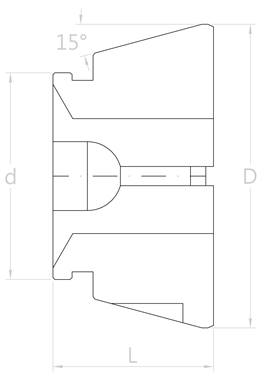

( unit : mm )

Rubber Collet

Max. Capacity ( Through )

Model

d

L

D

Round

Square

Hexagon

Collet Wrench

42BZI

54

( 2.13" )

42

( 1.65" )

79.3

( 3.12" )

42

( 1.65" )

30.1

( 1.19" )

36.3

( 1.43" )

MV3200
