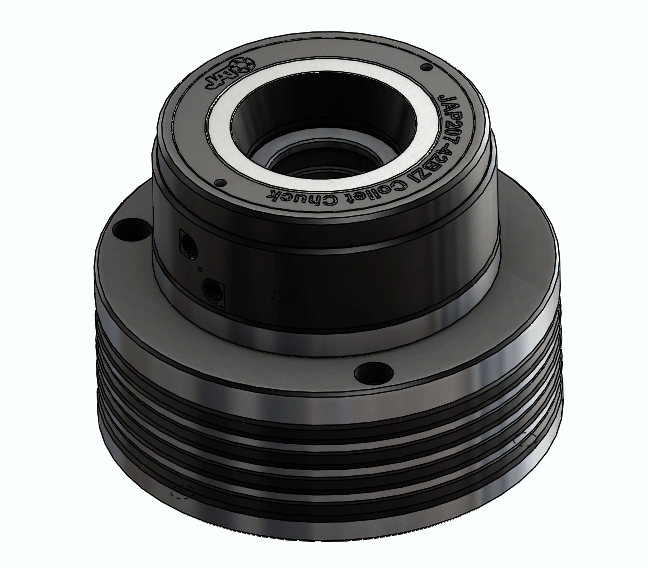

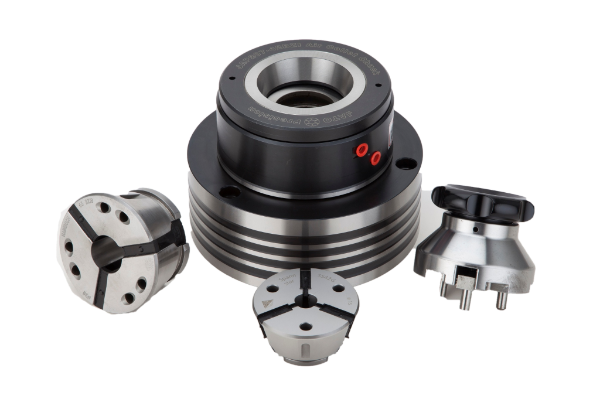

JAP207-42BZI Air Collet Chuck
For
Hainbuch Style Collets
|
|
Product
Features ◢ Work with
rubber collet ◢ Built-in
rotary cylinder ◢ Parallel
Clamp with over 1.5mm range ◢ Really fast
collet change with wrench ◢ Import selected
deep groove ball bearing,stable and tough ◢ Double piston,provide more
clamping force ◢ High
resistance to coolant fluid and cutting chips(Fluid and dust proof when air
feeding in) ◢ No fluid direct to the chuck body |
▲Replace the wrench with MQ42 |
|
|
▲5μm Filter Applies in all series
of JAP100/JAP200, a set go along with packing |
|
|||||||

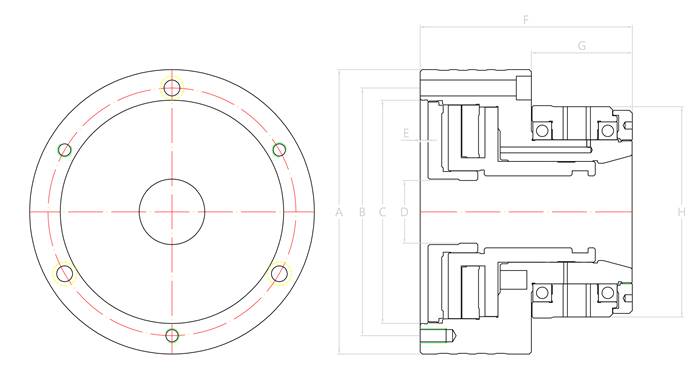

( unit : mm ) |
|||||||
A |
B |
C |
D |
E |
F |
G |
H ( P.C.D ) |
197 ( 7.76" ) |
172 ( 6.77" ) |
155 ( 6.10" ) |
42 ( 1.65" ) |
5.5 ( 0.22" ) |
146 ( 5.75" ) |
69.5 ( 2.74" ) |
146 ( 5.75" ) |
Air/Hydraulic |
Collet |
Max. RPM |
Max. Capacity |
Piston Area |
Air |
42BZI Collet |
2500 |
42mm ( 1.65" ) |
256 cm2 ( 39.68 in2 ) |
Mounting Bolts |
Air Pressure |
Gripping Force |
Net Weight |
3H-M10 ( front )+ |
3-7kg/cm2 ( 42.67-100psi ) |
3530 kgf@7kg/cm2 ( 7782 lbf@100psi ) |
21.9 kgs ( 48.3 lbs ) |
|
|||||||
( unit : mm ) |
|||||||

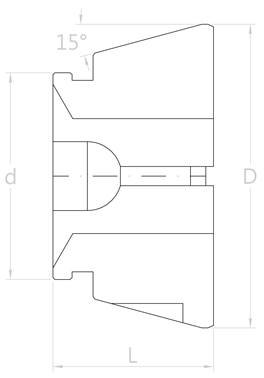

Rubber Collet |
Max. Capacity ( Through ) |
|
|||||
Model |
d |
L |
D |
Round |
Square |
Hexagon |
Collet Wrench |
42BZI |
54 ( 2.13" ) |
42 ( 1.65" ) |
79.3 ( 3.12" ) |
42 ( 1.65" ) |
30.1 ( 1.19" ) |
36.3 ( 1.43" ) |
MV3200 |
