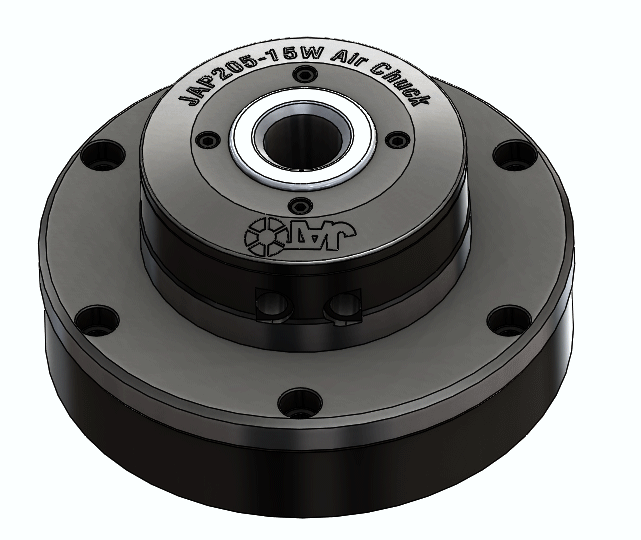

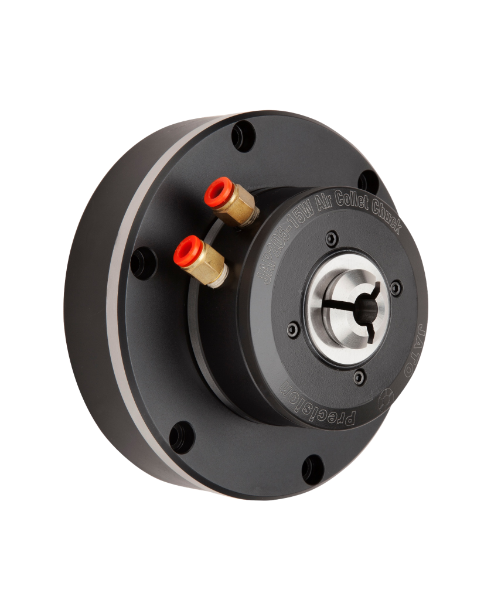

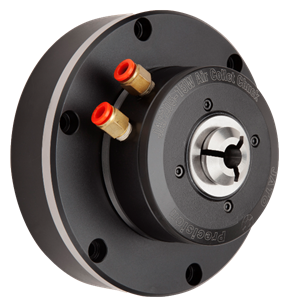

JAP205-15/JAP205-15W
Air Collet Chuck/OverGrip Air Collet
Chuck
|
|
|||||||||||||||||||||||||||||||||||||||||||||
Specifacation ▲ Built in rotary cylinder, free from draw bar and rotary cylinder ▲ Easy installation, no specialist required ▲ Work with standard YB-15 collet,either with 15W over grip collet for
over 3mm ▲ Import selected deep groove ball bearing, stable and tough ▲ High resistance to coolant fluid and cutting chips (Fluid and
dust proof when air feeding in) ▲ Must work with 5um filter in F.R.L units
|
Collet |
Max. RPM |
Air Pressure |
Max. Capacity |
Piston Area |
Gripping Force |
Net Weight |
15W |
4000 |
2-8 kg/cm2 ( 29-114 psi ) |
12 mm ( 0.47" ) |
69 cm2 ( 10.7in2 ) |
740 kgf@7kg/cm2 ( 1629 lbf@100psi ) |
4.7 kgs ( 10.4 lbs ) |
YB-15 |
15mm (0.59”) |
1605 kgf@7kg/cm2 ( 3533 lbf@100psi ) |
|
