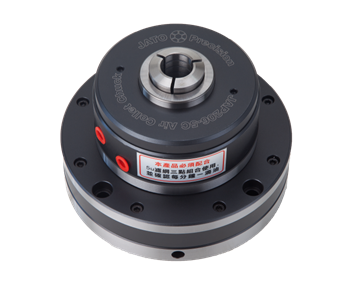

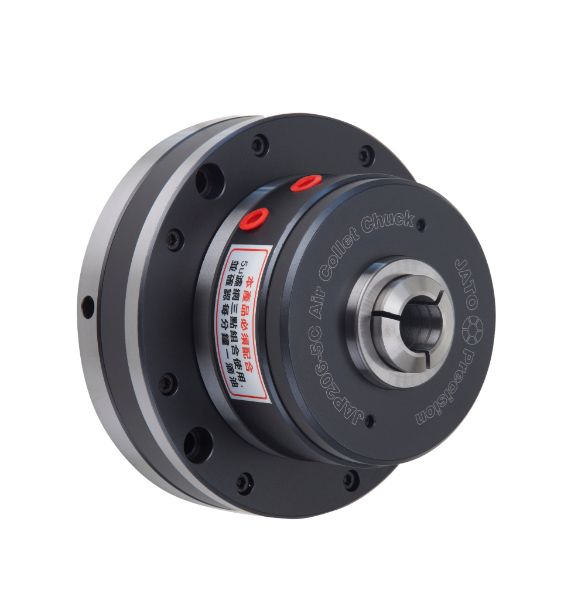

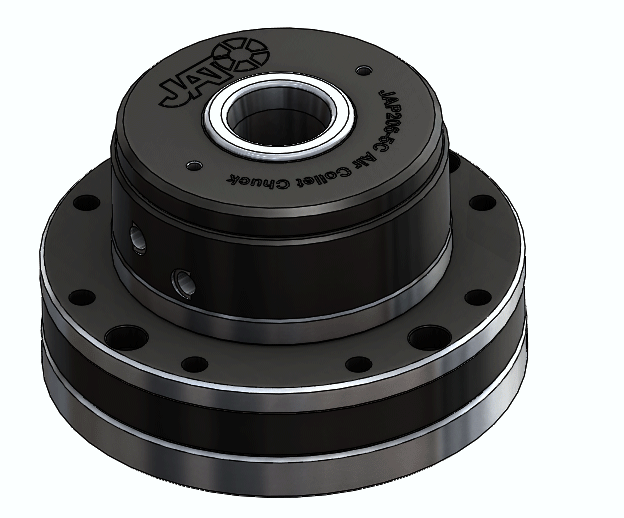

JAP200 Rotary Air Collet Chuck
|
|
|
|
|
Product
Features ▲ Built in rotary cylinder,free from draw bar
and rotary cylinder ▲
Work with
most popular collet,easy to find replacement or repair in local ▲ Double piston,provide more clamping force
in limited O.D ▲ Import selected deep groove ball
bearing,stable and tough |
||
|
▲ Self-lock design
on the close side to offer higher safety ▲ High resistance to coolant
fluid and cutting chips (Fluid and dust proof when air
feeding in) ▲
Please usd 5um filter in F.R.L units ▲ Easy installation,no specialist required |
▲5μm Filter Applies in all series of JAP100/JAP200, a set go along
with packing |
|
|
▲Applies : On Lathe |
▲Applies : On 4/5 axis rotary
table |
|
|
|
||||||||||||
|

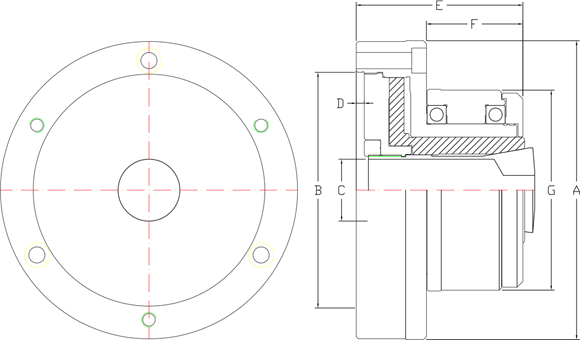

( unit : mm ) |
||||||||||||
|
|
A |
B |
C |
D |
E |
F |
G |
H(P.C.D.) |
||||
|
JAP205-15 |
144 |
120 |
15 |
5 |
74 |
36.5 |
88 |
128 |
||||
|
5.67” |
4.72” |
0.59” |
0.2” |
2.91” |
1.43” |
3.46” |
5.04” |
|||||
|
JAP206-25 |
168 |
130 |
26 |
5 |
101 |
55 |
116 |
147 |
||||
|
6.61" |
5.12" |
1.02" |
0.2" |
3.98" |
2.17" |
4.57" |
5.79" |
|||||
|
JAP206-5C |
168 |
130 |
26 |
5 |
101 |
55 |
116 |
147 |
||||
|
|
|
||||||||||
|
|
|
||||||||||
|
|
6.61" |
5.12" |
1.02" |
0.2" |
3.98" |
2.17" |
4.57" |
5.79" |
||||
|
JAP207-16C |
203 |
160 |
40 |
5 |
113 |
65 |
136 |
136 |
||||
|
7.99" |
6.30" |
1.57" |
0.2" |
4.44” |
2.56" |
5.35" |
6.93" |
|||||
|
|
Mounting Bolts |
Collet |
Max. RPM |
Air Pressure |
|
JAP205-15 |
6H-M6(Front) |
YB-15 Collet |
4000 |
2-8kg/cm2 ( 29-114 psi ) |
|
JAP206-25 |
4H-M8 ( front ) |
YB-25 Collet |
3600 |
3-8kg/cm2 ( 43-114 psi ) |
|
JAP206-5C |
4H-M8 ( front ) |
5C Collet |
3600 |
|
|
JAP207-16C |
3H-M10 ( front )+ 3H-M10 ( rear ) |
16C Collet |
2800 |
|
|
Max. Capacity |
Piston Area |
Gripping Force |
Net Weight |
|
JAP205-15 |
15mm |
69
cm2 |
740
kgf@7kg/cm2 |
4.7kgs(10.4lbs) |
|
JAP206-25 |
26mm |
130
cm2 ( 20.15 in2
) |
3465
kgf@7kg/cm2 ( 7639 lbf@100psi
) |
10 kgs ( 22 lbs ) |
|
JAP206-5C |
26 mm ( 1.02"
) |
130
cm2 ( 20.15 in2
) |
3465
kgf@7kg/cm2 ( 7639 lbf@100psi
) |
10 kgs ( 22 lbs ) |
|
JAP207-16C |
40 mm ( 1.57"
) |
155
cm2 ( 24.0 in2
) |
4078
kgf@7kg/cm2 ( 8990 lbf@100psi
) |
14.8
kgs ( 32.6 lbs
) |
|
|
|||||||
|
( unit : mm ) |
|||||||
|

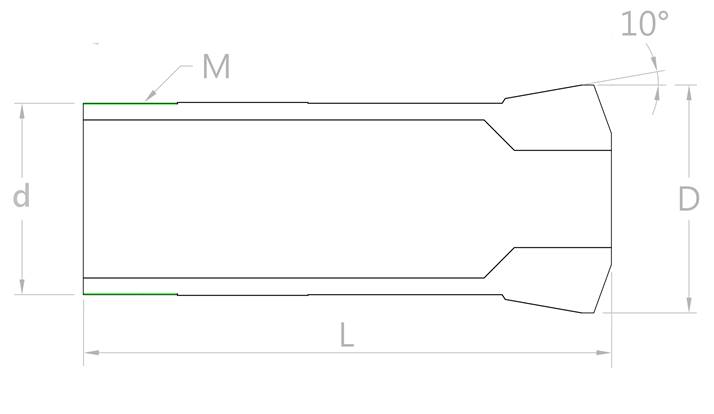

Draw-back collet |
Max. Capacity |
||||||
|
Model |
d |
D |
L |
M ( Thread ) |
Round |
Square |
Hexagon |
|
YB-15 |
19 |
26 |
76 |
M18xP1.2 |
16.2 |
10.6 |
13 |
|
0.75 |
1.02 |
2.99 |
0.64 |
0.42 |
0.51 |
||
|
YB-25 |
32 |
39.5 |
102 |
M31.5x20T |
27 |
19 |
23 |
|
1.26 |
1.56 |
4.01 |
1.06" |
0.75" |
0.91" |
||
|
5C |
31.75 |
37.5 |
87 |
M31.5x20T |
26 |
19 |
23 |
|
1.25" |
1.48" |
3.43" |
1.02" |
0.75" |
0.91" |
||
|
16C |
48 |
58 |
114 |
M47.5xP1.75 |
40 |
28.2 |
34.6 |
|
1.89" |
0.28" |
4.49" |
1.57" |
1.11" |
1.36" |
||
|
|
