Cylinder-Integrated Collet ChuckHOME / Product
JAP200

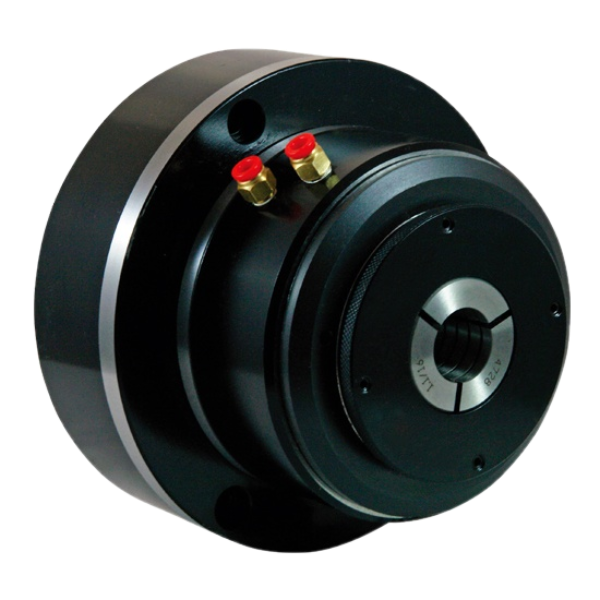

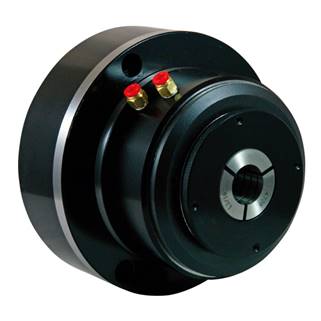

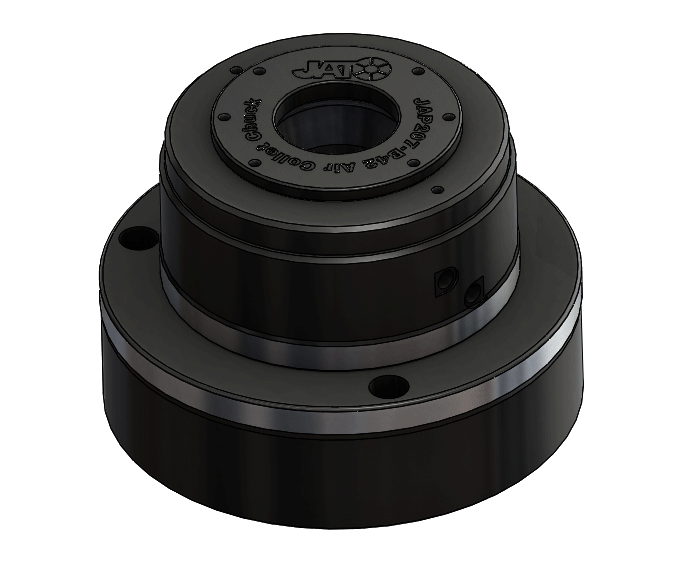

Rotary Air Collet Chuck
|
|
|
|
|
Product
Features ▲Work
with most popular collet,easy to find replacement or repair in local ▲Double
piston,provide more clamping force in limited O.D ▲Please usd 5um filter in F.R.L units ▲Easy
installation,no specialist required |
▲5μm Filter Applies
in all series of JAP100/JAP200, a set go along with packing |
|
|
▲Import selected
deep groove ball bearing,stable and tough ▲Built
in rotary cylinder,free from draw bar and rotary cylinder ▲High resistance to coolant
fluid and cutting chips (Fluid and dust proof when air feeding in) ▲Self-lock design on the close side to offer higher safety |
||
|
|
||
|
Applies : On Lathe |
Applies : On 4/5 axis rotary table |
|
|
|
||||||||
|

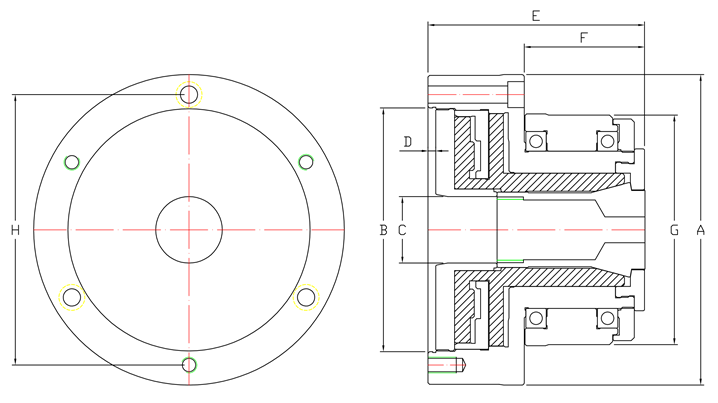

(unit : mm) |
||||||||
|
|
A |
B ( P.C.D ) |
C |
D |
E |
F |
G |
H ( P.C.D ) |
|
JAP207-B42 |
197 ( 7.76"
) |
172 ( 6.77" ) |
155 ( 6.10"
) |
42 ( 1.65"
) |
5 (
0.20" ) |
138 ( 5.43") |
77 ( 3.03"
) |
146 ( 5.76"
) |
|
JAP208-B60 |
214 ( 8.43"
) |
186 ( 7.32" ) |
170 ( 6.69"
) |
60 ( 2.36"
) |
5.5 ( 0.22" ) |
148 ( 5.83") |
85 ( 3.35"
) |
164 ( 6.46"
) |
|
JAP210-B80 |
170 ( 6.69"
) |
226 ( 8.90" ) |
200 ( 7.87"
) |
80 ( 3.15"
) |
6 ( 0.24"
) |
151 (5.94") |
80 ( 3.16"
) |
197 ( 7.76"
) |
|
|
最高轉速 |
最大夾持徑 |
夾持力 |
活塞面積 |
工作壓力 |
|
JAP207-B42 |
2500 |
42mm ( 1.65"
) |
4740
kgf@7kg/cm2 ( 10428 lbf@100psi
) |
280cm2 ( 43.4 in2
) |
3-8 kg/cm2 ( 43-114 psi ) |
|
JAP208-B60 |
2000 |
60mm ( 2.36"
) |
5150
kgf@7kg/cm2 ( 11330 lbf@100psi
) |
304cm2 ( 47.6 in2
) |
|
|
JAP210-B80 |
1500 |
80mm ( 3.15"
) |
6030
kgf@7kg/cm2 ( 12060 lbf@100psi
) |
356cm2 ( 55.2 in2
) |
|
|
活塞面積 |
安裝螺絲孔 |
工作筒夾 |
產品淨重 |
|
JAP207-B42 |
280cm2 ( 43.4in2
) |
3H-M10 (前鎖)+ 3H-M10 (後鎖) |
B42 ( DIN6343
173E ) |
17.2
kgs ( 37.9 lbs
) |
|
JAP208-B60 |
304cm2 ( 47.6in2
) |
B60 ( DIN6343
185E ) |
21.5
kgs ( 47.4 lbs
) |
|
|
JAP210-B80 |
356cm2 ( 55.2in2
) |
6H-M10 (前鎖) |
B80 ( DIN6343
193E ) |
32 kgs ( 70.5 lbs
) |
|
|
||||||||||
|
( unit :
mm ) |
||||||||||
|

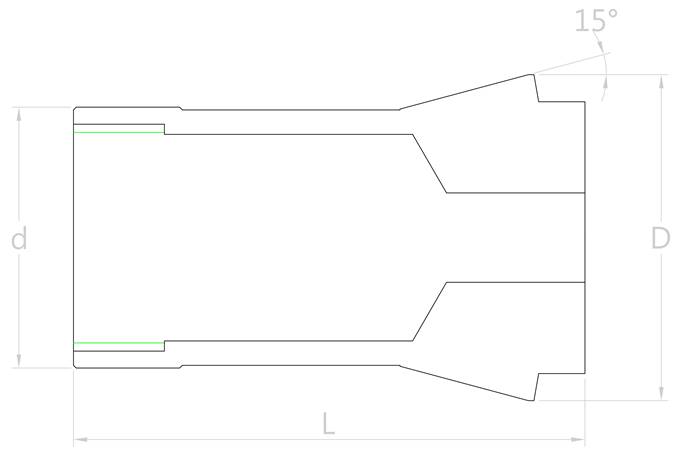

Push-Forward collet |
Max. Capacity |
|
||||||||
|
Model |
d |
L |
D |
Round |
Square |
Hexagon |
|
|||
|
B42 ( 173E ) |
48 ( 1.89" ) |
94 ( 3.70" ) |
60 ( 2.36" ) |
44 ( 1.73" ) |
30.1 ( 1.19" ) |
37 ( 1.46" ) |
|
|||
|
B60 ( 185E ) |
66 ( 2.60" ) |
110 ( 4.33" ) |
84 ( 3.31" ) |
61 ( 2.40" ) |
43 ( 1.69" ) |
52 ( 2.05" ) |
|
|||
|
B80 ( 193E ) |
90 ( 3.54" ) |
130 ( 5.12" ) |
107 ( 4.21" ) |
80 ( 3.15" ) |
56.5 ( 2.22" ) |
69.2 ( 2.72" ) |
|
|||
|
||||||||||
