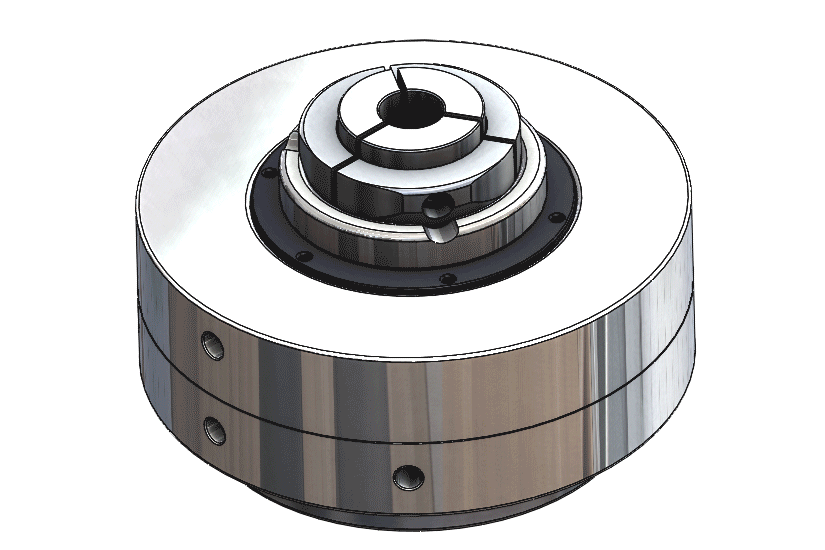

JA/JH
Rotary
Power Chuck
Intoduction

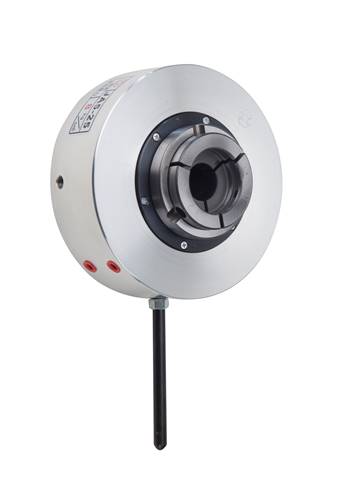

▲ Built in rotary cylinder
▲ No draw tube,no rotary cylinder required
▲ Extra large piston,provide high clamping force
▲ Center through hole,able to arrange auto feeding
▲ Best budget solution for manual lathe into automation
▲ No fluid direct to the chuck body

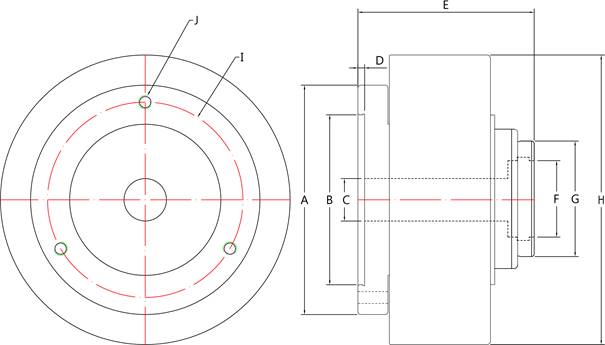

Dimensions and Specifications
|
|
|
( Unit : mm )
|
|
Jaw Style Chuck - Air
|
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
J
|
|
JA5-25
|
170
( 6.69" )
|
68
( 2.68" )
|
45
( 1.77" )
|
25
( 0.98" )
|
4
( 0.16" )
|
100
( 3.94" )
|
135
( 5.31" )
|
102.5
( 4.04" )
|
115
( 4.53" )
|
3H-M8
|
|
JA7-40
|
213
( 8.39" )
|
94
( 3.7" )
|
65
( 2.56" )
|
45
( 1.77" )
|
5
( 0.20" )
|
155
( 6.10" )
|
192
( 7.56" )
|
126
( 4.96" )
|
172
( 6.77" )
|
3H-M10
|
|
JA7-70
|
265
( 10.43" )
|
136
( 5.35" )
|
105
( 4.13" )
|
68
( 2.68" )
|
141
( 5.55" )
|
|
|
Jaw
|
Operating
Pressure
|
Max.
RPM
|
Max. Capacity
(Through/None)
|
Piston
Area
|
Gripping Force
|
Net
Weight
|
|
JA5-25
|
C-25
|
2-9kg/cm2
( 28-128psi )
|
1800
|
25mm/32mm
( 0.98"/1.26" )
|
115cm2
( 17.8in2 )
|
2254 kgf@7kg/cm2
( 4969 lbf@100psi )
|
7.3 kgs
( 16.1 lbs )
|
|
JA7-40
|
C-40
|
1600
|
45mm/50mm
( 1.77"/1.97" )
|
182cm2
( 28.2in2 )
|
3567 kgf@7kg/cm2
( 7864 lbf@100psi )
|
14.4 kgs
( 31.7 lbs )
|
|
JA7-70
|
C-70
|
1400
|
68mm/90mm
( 2.68"/3.54" )
|
329cm2
( 50.8in2 )
|
6429 kgf@7kg/cm2
( 14174 lbf@100psi )
|
23.0 kgs
( 50.7 lbs )
|
|
|
|
( Unit : mm )
|
|
Jaw Style Chuck - Hydraulic
|
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
J
|
|
JH5-25
|
138
( 5.43" )
|
68
( 2.68" )
|
45
( 1.77" )
|
25
( 0.98" )
|
4
( 0.16" )
|
100
( 3.94" )
|
135
( 5.31" )
|
102.5
( 4.04" )
|
115
( 4.53" )
|
3H-M8
|
|
JH7-40
|
190
( 7.48" )
|
94
( 3.70" )
|
65
( 2.56" )
|
45
( 1.77" )
|
5
( 0.20" )
|
155
( 6.10" )
|
192
( 7.56" )
|
124.5
( 4.9" )
|
172
( 6.77" )
|
3H-M10
|
|
JH7-70
|
211
( 8.30"
)
|
136
( 5.35" )
|
105
( 4.13" )
|
68
( 2.68" )
|
5
( 0.20" )
|
155
( 6.1" )
|
192
( 7.56" )
|
141
( 5.55" )
|
172
( 6.77" )
|
|
JH9-90
|
232
( 9.13" )
|
136
( 5.35" )
|
105
( 4.13" )
|
88
( 3.46" )
|
6
( 0.24" )
|
190
( 7.48" )
|
230
( 9.06" )
|
150
( 5.91" )
|
210
( 8.27" )
|
3H-M12
|
|
JH9-120
|
275
( 10.83"
)
|
168
( 6.61" )
|
140
( 5.51" )
|
118
( 4.65" )
|
6
( 0.24" )
|
190
( 7.48" )
|
229
( 9.02" )
|
157.5
( 6.20" )
|
210
(8.27" )
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Jaw
|
Operating
Pressure
|
Max.
RPM
|
Max. Capacity
( Through/None )
|
Piston
Area
|
Gripping Force
|
Net Weight
|
|
JH5-25
|
C-25
|
10-25 kg/cm2
( 142-356psi )
|
1800
|
25mm/32mm
( 0.98"/1.26" )
|
56cm2
( 8.68in2 )
|
2508 kgf@16kg/cm2
( 5519 lbf@228psi )
|
5.8 kgs
( 12.8 lbs )
|
|
JH7-40
|
C-40
|
10-20 kg/cm2
( 142-285psi )
|
1600
|
45mm/50mm
( 1.77"/1.97" )
|
85cm2
( 13.7in2 )
|
4032 kgf@16kg/cm2
( 8870 lbf@228psi )
|
12.8 kgs
( 28.2 lbs )
|
|
JH7-70
|
C-70
|
1400
|
68mm/90mm
( 2.68"/3.54" )
|
117cm2
( 18.1in2 )
|
5197 kgf@16kg/cm2
( 11433 lbf@228psi )
|
18.0 kgs
(39.6lbs)
|
|
JH9-90
|
C-90
|
10-15 kg/cm2
( 142-213psi )
|
1100
|
88mm/88mm
( 3.52"/3.52" )
|
133cm2
( 20.7in2 )
|
5913 kgf@16kg/cm2
( 13009 lbf@228psi )
|
22.4 kgs
( 49.4 lbs )
|
|
JH9-120
|
C-120
|
900
|
118mm/118mm
( 4.65"/4.65" )
|
183cm2
( 28.4in2 )
|
6148 kgf@12kg/cm2
( 13528 lbf@171psi )
|
31.6 kgs
( 69.7 lbs )
|

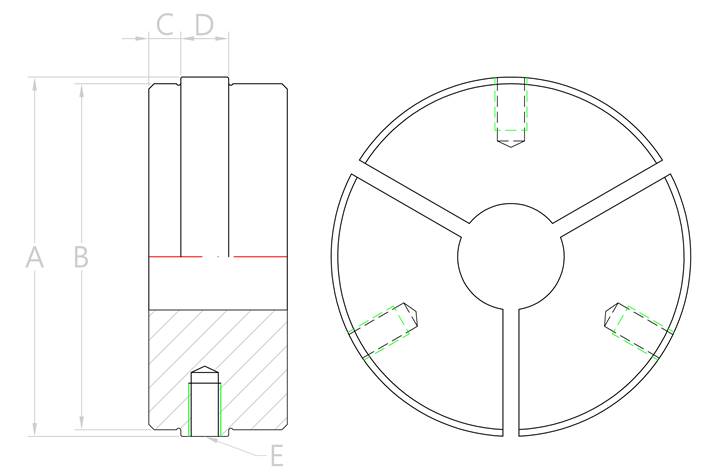

Modle Sheet with
Jaw Pad
|
|
|
( unit : mm )
|
|
Model
|
A
|
B
|
C
|
D
|
Bolts
|
|
C-25
|
47.5mm
( 1.87" )
|
45mm
( 1.77" )
|
3.5mm
( 0.13" )
|
7mm
( 0.28" )
|
M5x10
|
|
C-40
|
67.5mm
( 2.66" )
|
65mm
( 2.56" )
|
6.0mm
( 0.24" )
|
9mm
( 0.35" )
|
M6x12
|
|
C-70
|
107.5mm
( 4.23" )
|
105mm
( 4.13" )
|
6.0mm
( 0.24" )
|
9mm
( 0.35" )
|
M6x12
|
|
C-70
|
107.5mm
( 4.23" )
|
105mm
( 4.13" )
|
6.0mm
( 0.24" )
|
9mm
( 0.35" )
|
M6x12
|
|
C-120
|
143.5mm
( 5.65" )
|
140mm
( 5.51" )
|
6.0mm
( 0.24" )
|
9mm
( 0.35" )
|
M6x14
|
|
|
|
Varies Type of Jaw Pad
|
|
|
|
|
|
|
|
Through
Hole
|
Step
|
Serrated
|
Square,Hexagon
|
Extra
Iength
|
|
|
|
|
|
|
|
|
|
|
|
|
|
( unit : mm )
|
|

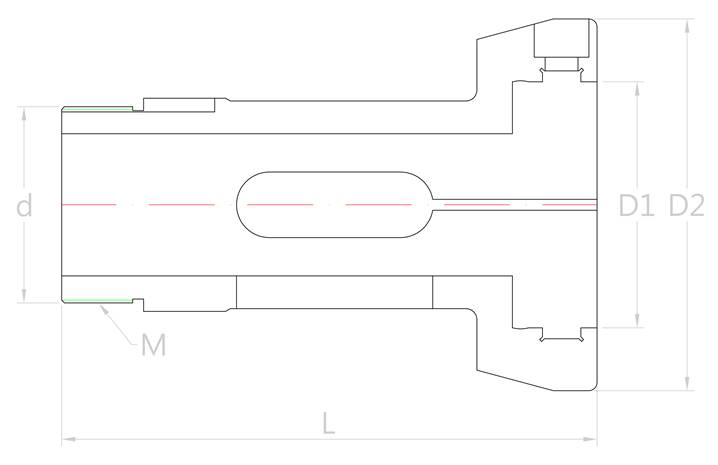

Rotary Power
Chuck-Collet for Replacement
|
|
|
d
|
Slope
|
L
|
D1
|
D2
|
M
|
|
JA5-25 / JH5-25
|
39
( 1.54"
)
|
15°
|
98
( 3.86"
)
|
45
( 1.77"
)
|
68
( 2.68"
)
|
M35.9x16T
|
|
JA7-40 / JH7-40
|
60
( 2.36"
)
|
15°
|
120
( 4.72"
)
|
65
( 2.56"
)
|
94
( 3.7" )
|
M59x16T
|
|
JA7-70 / JH7-70
|
82
( 3.23"
)
|
15°
|
135
( 5.31"
)
|
105
( 4.13"
)
|
136
( 5.35" )
|
M79.9x16T
|
|
JH9-90
|
102
( 4.02"
)
|
15°
|
143
( 5.63"
)
|
105
( 4.13"
)
|
136
( 5.35"
)
|
M99.8xP1.5
|
|
JH9-120
|
135
( 5.31"
)
|
15°
|
151
( 5.94"
)
|
140
( 5.51"
)
|
168
( 6.61"
)
|
M133x16T
|
|
|
|
